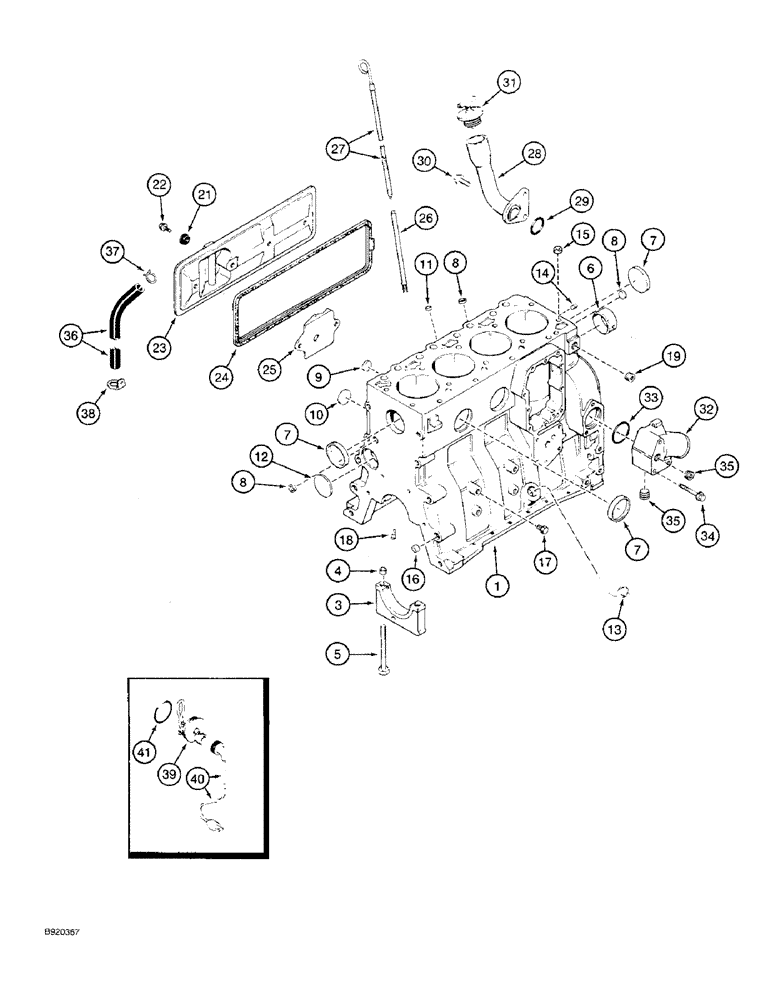

Запчасти Case 480F LL (2-35A) - CYLINDER BLOCK, 4-390 ENGINE, USES 7 MM FUEL INJECTOR NOZZLE, ENGINE S/N 44511034 AND AFTER (02) - ENGINE

1989066C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 4-390 standard, uses 7 mm fuel injector nozzle, complete, new, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order 1989091C2 basic engine shown below

1шт.

AR174090

REMAN-REPLACEMENT EN

Reman For New P/N 1989066C2

1шт.

AC174090

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989091C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, new, includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, ex manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, frt crank pulley & belt tensioner

1шт.

1989091C3R

REMAN-BASIC ENGINE

Reman For New P/N 1989091C2. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR933238

REMAN-SHORT ENGINE

Reman For New P/N 1989091C2

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

JR920384

SKELETON ENGINE

Block Assembly - short, engine, remanufactured, component parts on this figure do not apply to the remanufactured assembly, replaces AR77758

1шт.

AC77758

CORE-ENGINE

Return Part Number - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J920384

BLOCK ASSY.

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, replaces A77758 block assembly, Includes: Ref. 1 - 9

1шт.

Order P/N J920399 Hardware Kit when ordering P/N J920384 Block Assembly or P/N J916254 Stripped Block

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY - stripped, engine, replaces A77757 block assembly, Includes: Ref. 3 - 9

1шт.

Order P/N J920399 Hardware Kit when ordering P/N J920384 Block Assembly or P/N J916254 Stripped Block

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-30, item 2

1шт.

7

A77782

PLUG

PLUG - expansion, 58 mm OD, replaces J900965 plug

4шт.

8

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion, Replaces A77539 Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 10 - 19

1шт.

Order P/N J920399 Hardware Kit when ordering P/N J920384 Block Assembly or P/N J916254 Stripped Block

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD, replaces J900687

1шт.

13

A77439

PLUG

PLUG - expansion, camshaft, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

J919002

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

A77429

PLUG

PLUG - hex socket, 1/4 inch PT

1шт.

21

J900267

SEAL

SEAL - cover bolt

4шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange head, 8-1.25 x 20 mm, Replaces 845-8016 bolt

4шт.

23

J925680

COVER

COVER - tappet, replaces J916441 and J905023 cover

1шт.

24

J922078

GASKET

GASKET - tappet cover, replaces J904056 gasket

1шт.

25

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

26

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - dipstick

1шт.

27

J905781

DIPSTICK

DIPSTICK - oil level gauge

1шт.

28

J905440

TUBE

TUBE - oil fill

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

30

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - heavy hex flange, 12-1.75 x 25mm, class 10.9

2шт.

31

A77424

FILLER CAP

CAP - fill, oil

1шт.

32

J903102

CONNECTION

CONNECTION - water inlet

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

34

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10-1.50 x 75 mm, class 10.9

3шт.

35

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

36

J918612

TUBE,360.00 mm

Breather, Replaces J906593

1шт.

37

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

38

J909670

CLIP

CLIP - retaining

1шт.

A77634

KIT

KIT - engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT- engine heater, 120 volt

1шт.

40

J905113

CABLE

CABLE - heater, block

1шт.

41

J910517

O-RING

O-RING - heater, sealing

1шт.
