Запчасти Case 480F LL (2-32) - CYLINDER BLOCK, 4-390 ENGINE, USES 9 MM FUEL INJECTOR NOZZLE, PRIOR TO ENGINE S/N 44511034 (02) - ENGINE

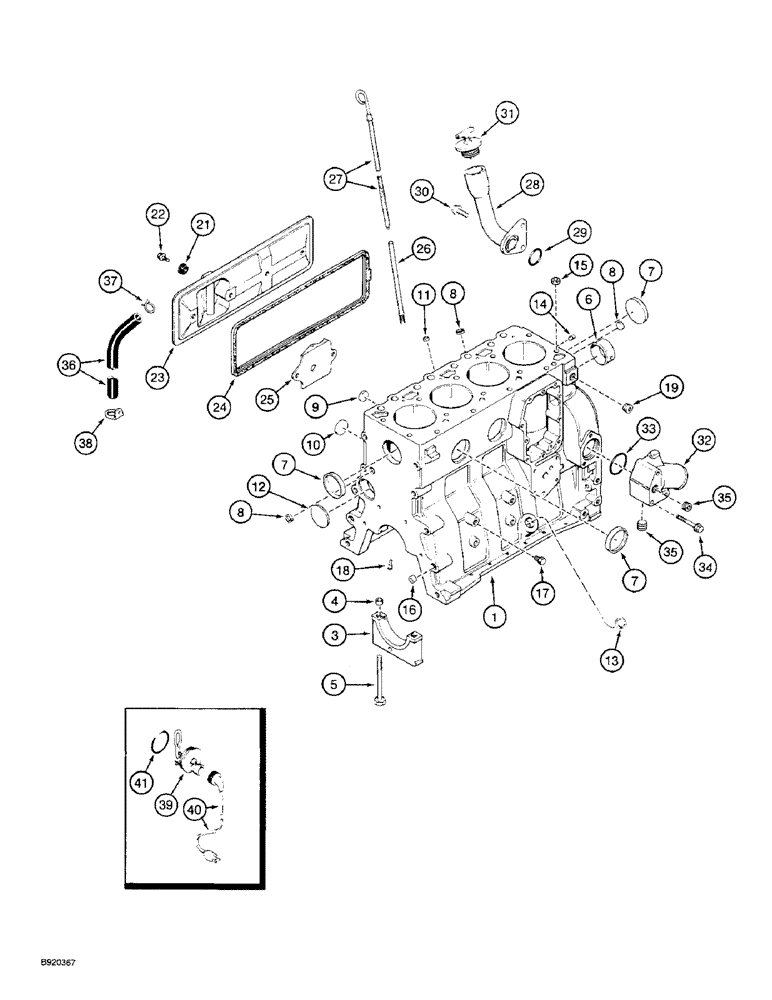

Схема запчастей Case 480F LL - (2-32) - CYLINDER BLOCK, 4-390 ENGINE, USES 9 MM FUEL INJECTOR NOZZLE, PRIOR TO ENGINE S/N 44511034 (02) - ENGINE

Артикул

Название

Примечание

Количество

A174025

ENGINE

ASSEMBLY - 4-390 standard, uses 9 mm fuel injector nozzle, complete, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

A174025 is no longer available. For service order 1989091C2 basic engine assembly, see Figure 2-35A

1шт.

A174351

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, frt crank pulley, belt tensioner

1шт.

A174351 is no longer available. Order 1989091C2 basic engine assembly, see Figure 2-35A.

1шт.

J905377

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, order J920384 block, J920399 hardware kit and J926302 oil pump, Includes: Ref. 1 - 9

1шт.

JR905377

ENGINE, EXCHANGE

Block Assembly - short, engine, remanufactured, component parts on this figure do not apply to the remanufactured assembly

1шт.

JC905377

CORE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly

1шт.

Order P/N J905813 Hardware Kit when ordering P/N J905377 Block Assembly or P/N J905376 Stripped Block

1шт.

JR933238

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY - stripped, engine, no longer available, order J916254 block and J920399 hardware kit on Figure 2-35A, Includes: Ref. 3 - 9

1шт.

Order P/N J905813 Hardware Kit when ordering P/N J905377 Block Assembly or P/N J905376 Stripped Block

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft front, see Figure 2-30, item 2

1шт.

7

A77782

PLUG

- expansion, 58 mm OD, replaces J900965 plug

4шт.

8

J900956

PLUG

- expansion, 18 mm OD

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

Expansion, Replaces A77539 Cup, 1", Stainless

2шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, order components Ref. 10 - 19

1шт.

Order P/N J905813 Hardware Kit when ordering P/N J905377 Block Assembly or P/N J905376 Stripped Block

1шт.

10

J900958

PLUG

- expansion, 32 mm OD

2шт.

11

J900955

PLUG

- expansion, 10 mm OD

1шт.

12

172599

PLUG,Exp, 2 3/8"

- expansion, Welch, 60 mm OD, replaces J900687

1шт.

13

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

18

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

A77429

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

21

J900267

SEAL

- cover bolt

4шт.

22

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8-1.25 x 16 mm, Replaces J900629 bolt

2шт.

23

J916441

COVER

- tappet, replaces J905023

1шт.

24

J922078

GASKET

- tappet cover, replaces J904056

1шт.

25

J907586

BAFFLE

- tappet cover

1шт.

26

J905779

TUBE,9.52 mm OD x 228 mm L

- dipstick

1шт.

27

J905781

DIPSTICK

- oil level gauge

1шт.

28

J905440

TUBE

- oil fill

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID

1шт.

30

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12-1.75 x 25 mm, Replaces J901249 bolt

2шт.

31

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

32

J903102

CONNECTION

- water inlet

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

34

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10-1.50 x 75 mm, replaces J901757 bolt

3шт.

35

A77429

PLUG

- hex socket pipe, 1/2 inch PT

2шт.

36

J906593

HOSE

Breather

1шт.

37

J904230

CLAMP,25.4mm

- spring, hose

1шт.

38

J909670

CLIP

- retaining

1шт.

A77634

KIT

- engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt

1шт.

40

J905113

CABLE

- engine block heater

1шт.

41

J910517

O-RING

- heater sealing

1шт.

Выбрано товаров: 53
