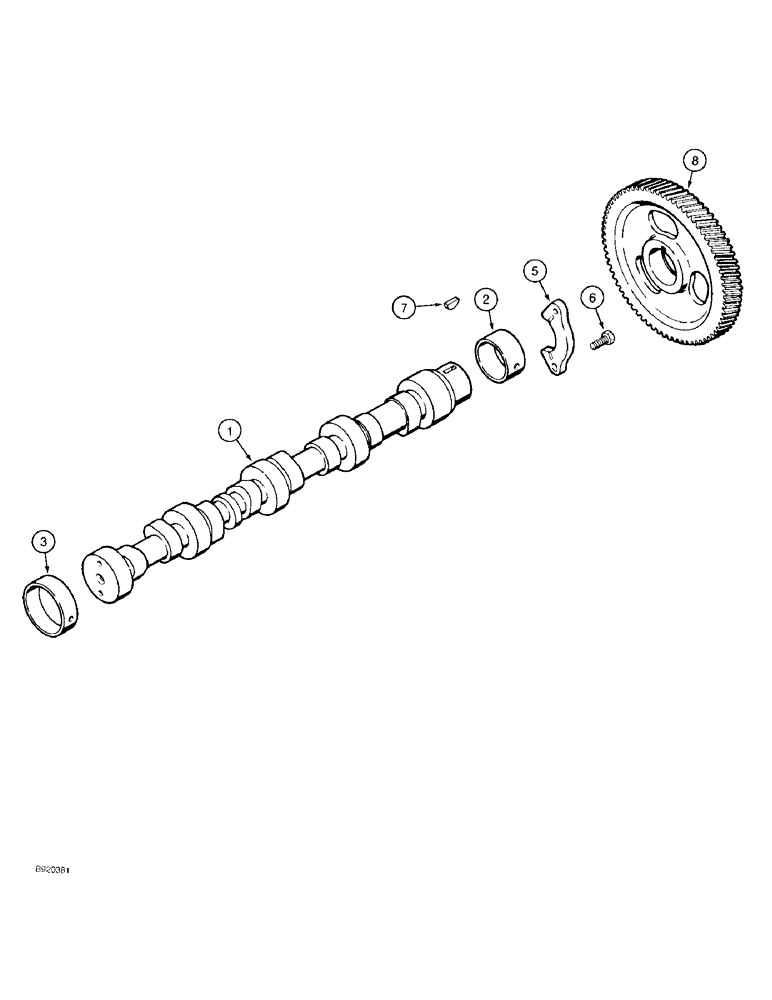

Запчасти Case 480F LL (2-30) - CAMSHAFT, 4-390 ENGINE (02) - ENGINE

1

J925582

CAMSHAFT

- engine, replaces J914638

1шт.

J929039R

REMAN-CAMSHAFT

480F, 480F LL, BOTH (9/89-), Reman For New P/N J925582

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front, standard

1шт.

2

J904369

BUSHING

- camshaft front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

4шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, P/N J903242, bushings shown above.

1шт.

5

J927155

SUPPORT

- thrust, camshaft, replaces J914641 support

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Camshaft gear, replaces J902332 #6, 5/32" x 5/8", HT

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.
