Запчасти Case 480F LL (2-24) - OIL PUMP AND OIL PAN, 4-390 ENGINE (02) - ENGINE

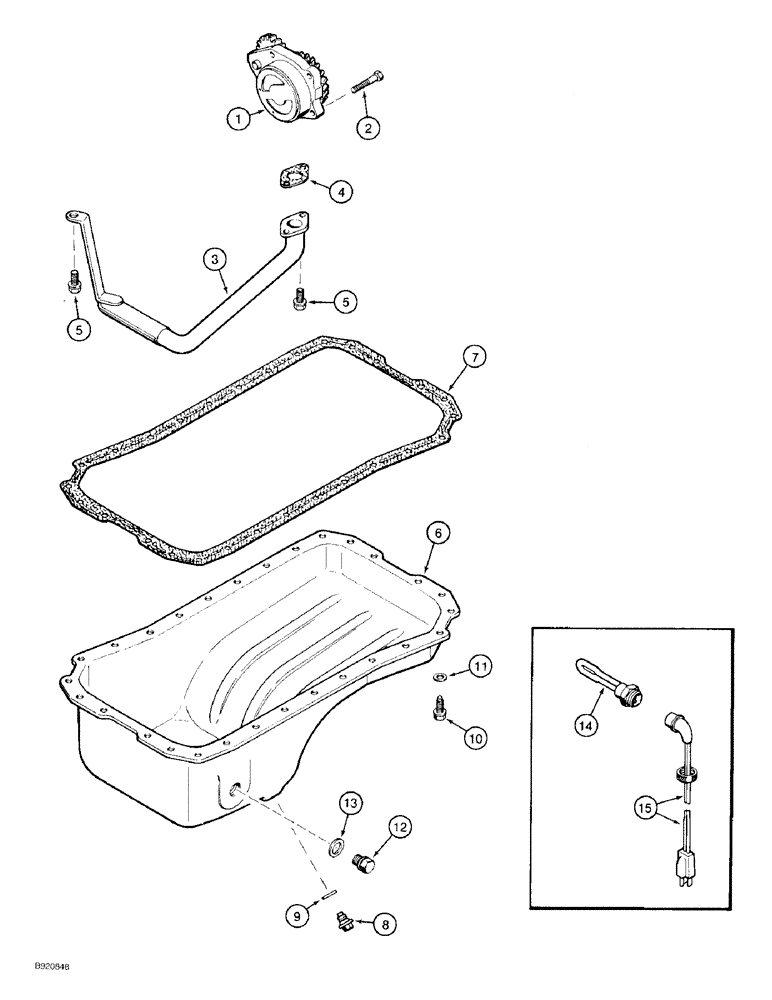

Схема запчастей Case 480F LL - (2-24) - OIL PUMP AND OIL PAN, 4-390 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J914005

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, prior to engine Serial Number 44511073, no longer available, order J926202 pump assembly

1шт.

JR914005

PUMP

PUMP - oil, remanufactured, North America only, prior to engine Serial Number 44511073, component parts shown on this figure do not apply to the remanufactured assembly, order JR926202

1шт.

JC914005

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, prior to engine Serial Number 44511073

1шт.

1

J926202

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, engine Serial Number 44511073 and after, replaces J918211 and J924719 oil pump

1шт.

JR926202

PUMP

PUMP - oil, remanufactured, North America only, engine Serial Number 44511073 and after, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR918211 and JR924719 oil pump

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, engine Serial Number 44511073 and after, replaces JC918211 and JC924719

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J905206

TUBE,1" OD

TUBE - suction, oil

1шт.

4

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8-1.25 x 16 mm, Replaces J900629 bolt

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 kit shown below

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG - drain, oil magnetic, 18 mm, replaces J900215 and J911638 plug

1шт.

9

J920773

SEALING WASHER

WASHER - seal, drain plug, replaces J900216 washer

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange, 8-1.25 x 25 mm, Replaces J907860 bolt

28шт.

11

J907537

SPRING WASHER

WASHER - Belleville, pan bolt, if used

28шт.

12

J924148

PLUG,M22 x 1.5

PLUG - heater hole, 22 mm, replaces J904386 plug

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

When engine oil heater kit is ordered, Ref. 13, P/N J902425 Washer, must also be ordered.

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 4, 7 and 9

1шт.

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 14 and 15

1шт.

When engine oil heater kit is ordered, Ref. 13, P/N J902425 Washer, must also be ordered.

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt

1шт.

15

J905113

CABLE

CABLE - engine block heater

1шт.

Выбрано товаров: 28
