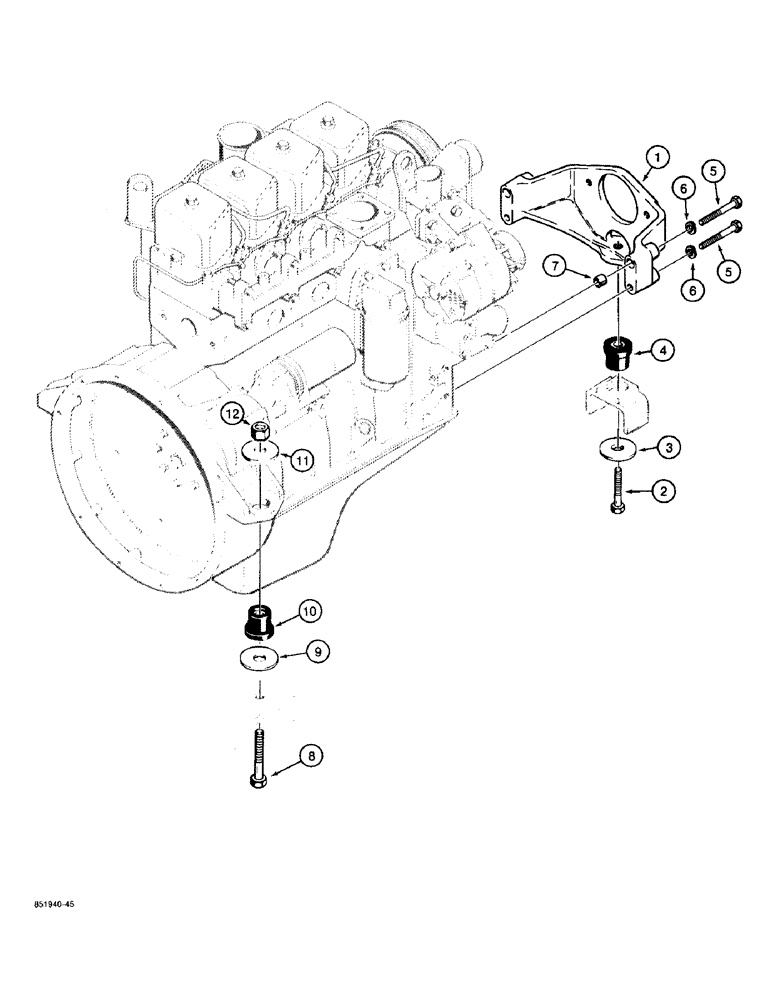

Запчасти Case 480F LL (2-14) - ENGINE MOUNTING (02) - ENGINE

1

A170580

SUPPORT

- engine front

1шт.

2

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

3

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

1шт.

4

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine moun, neprene, replaces D122727 insulator

1шт.

5

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

- hex, 12-1.75 x 85 mm

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

SLEEVE - dowel ring

2шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

9

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

2шт.

10

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine mount, neoprene, replaces D122727 insulator

2шт.

11

D35009

WASHER

- flat, special, hardened

2шт.

12

425-1010

NUT,5/8"-11, G5

2шт.
