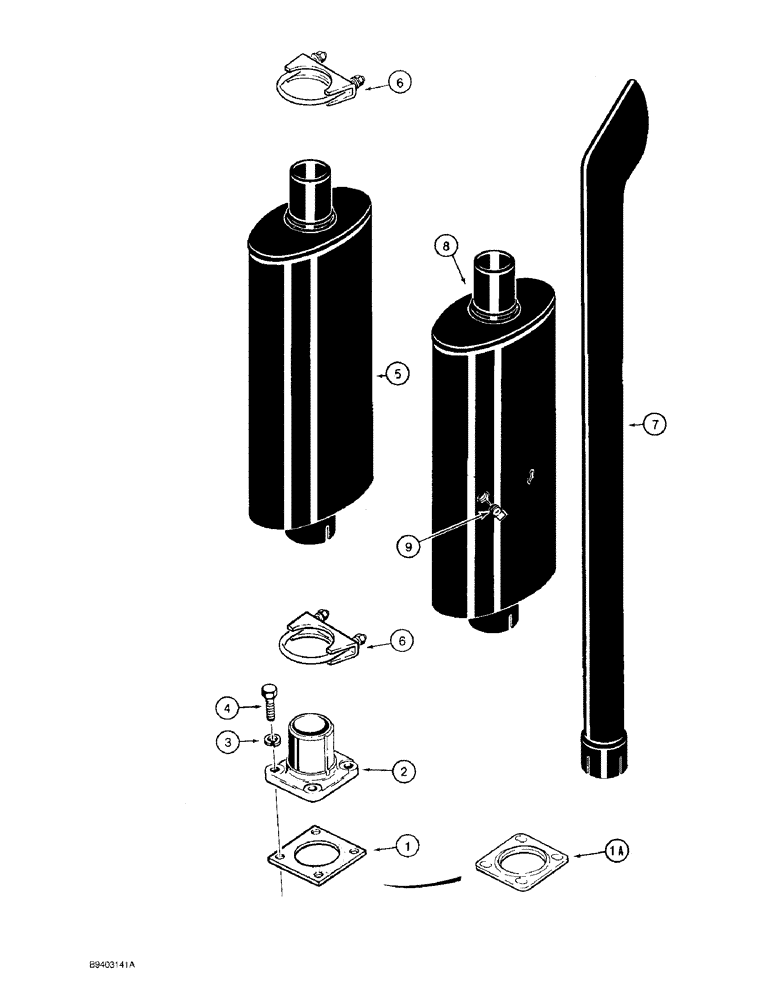

Запчасти Case 480F LL (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A170151

MANIFOLD GASKET

- exhaust pipe, no longer available, for service order item 1A, J912220 gasket

1шт.

1a

J912220

GASKET,0.4mm Thk

- exhaust pipe

1шт.

2

A170611

ADAPTER

- muffler

1шт.

3

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

4шт.

4

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

5

A173180

MUFFLER

- standard, if used

1шт.

6

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware

2шт.

7

A172152

TUBE

PIPE - exhaust, muffler extension

1шт.

8

A173648

ARRESTER

MUFFLER - spark arrester, Includes: Ref. 9

1шт.

9

217-77

PLUG

- square, 3/8 inch PT

2шт.
