Запчасти Case 480F LL (2-02) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

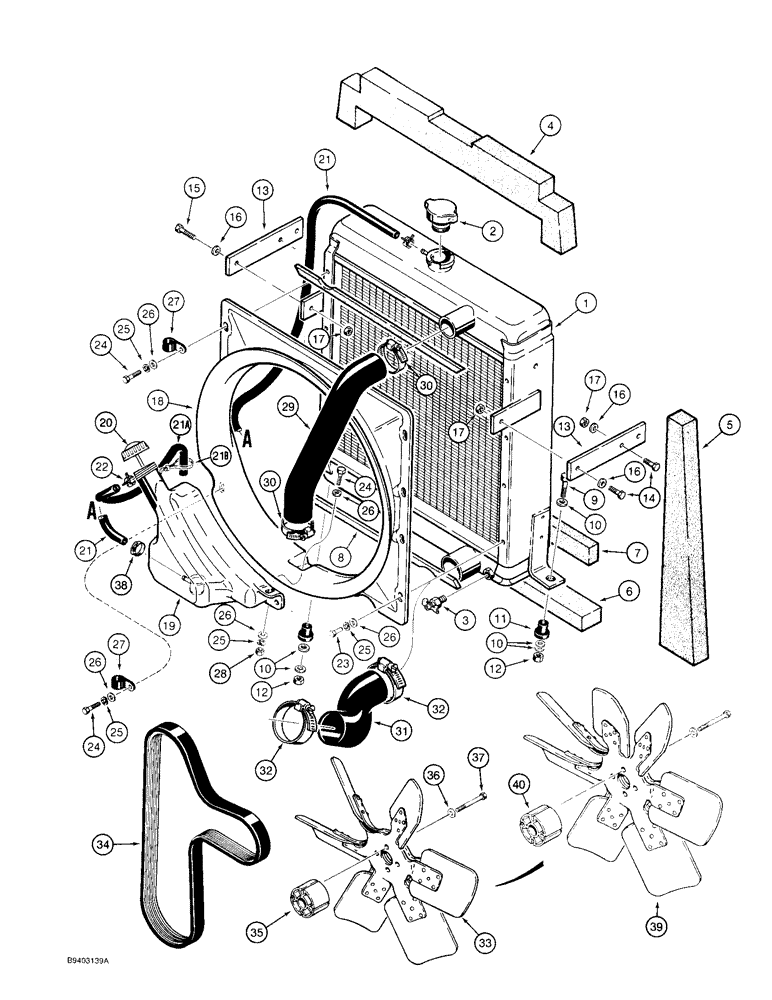

Схема запчастей Case 480F LL - (2-02) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A171080

RADIATOR

- engine cooling, replaces A171356

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-92

COCK

VALVE - 1/4 inch PT, drain

1шт.

4

D123421

HOOD

BAFFLE - radiator, top, base size is 5-5/16 inch (135 mm) x 24-5/8 inch (625 mm), cut from D92228 bulk, see below

1шт.

5

D123419

BAFFLE - radiator, sides, base size is 3-3/4 inch (95 mm) x 22-1/4 inch (565 mm), cut from D92228 bulk, see below

2шт.

6

D124130

BAFFLE

- radiator, lower, base size is 2 inch (50 mm) x 22-7/8 inch (580 mm), cut from D92228 bulk, see below

1шт.

7

D124129

BAFFLE - radiator, lower front, base size is 1 inch (25 mm) x 25-3/16 inch (640 mm), cut from D92228 bulk, see below

1шт.

8

A173165

SEALING STRIP

- radiator to shroud, upper and lower

2шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

6шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

2шт.

12

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

13

A173418

STRAP

- radiator, mounting, side

2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

18

A171002

DEFLECTOR

SHROUD - radiator

1шт.

19

A184370

RESERVOIR

- coolant recovery bottle, replaces A171805

1шт.

20

1547924C1

CAP

- screw-on, reservoir, replaces A184079

1шт.

21

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir, Cut from S120317X hose, See below 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

21a

D128547

HOSE,7.9 mm ID x 300.00 mm, SAE 30R6

Coolant Overflow, Cut from S120317X Hose, See Below 7.9 mm ID x 300.00 mm, SAE 30R6

1шт.

21b

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, retaining

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8-1.25 x 16 mm

6шт.

24

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- HH, CL 8.8, M8 x 1.25 x 30

3шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

10шт.

27

49768

CLIP

- P-type

2шт.

28

825-1408

NUT,M8, Cl 8

1шт.

29

A170431

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D-1 OR D-2

45.00 mm ID x 265.00 mm , SAE 20R4 per SAE J20, Upper

1шт.

30

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

31

A170632

RADIATOR HOSE,58.00 mm ID x 173.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D1 or D2

58.00 mm ID x 173.00 mm, SAE 20R4 per SAE J20, Lower

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

33

1998738C2

FAN

- engine cooling, 6 blades, if used, replaces A173545

1шт.

34

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

35

A184545

SPACER

fan, 43 mm, used with A173545 fan

1шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

37

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10-1.5 x 70 mm, used with A184545 spacer

4шт.

38

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Radiator hose at reservoir #4, 0.25/0.62 Type M Worm

1шт.

39

A184467

FAN

- engine cooling, 7 blades, if used

1шт.

40

A190656

SPACER

- fan, 20 mm, used with A184467 fan

1шт.

D92228

BAFFLE

- bulk pad, 35-1/2 inch (900 mm) x 55-1/8 inch (1400 mm) x 1-1/2 inch (38 mm), use to cut items 4 thru 7

1шт.

S120317X

HOSE

- 25 foot long, bulk

1шт.

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surfaces, 19-1/2 fluid ounces

1шт.

Выбрано товаров: 45
