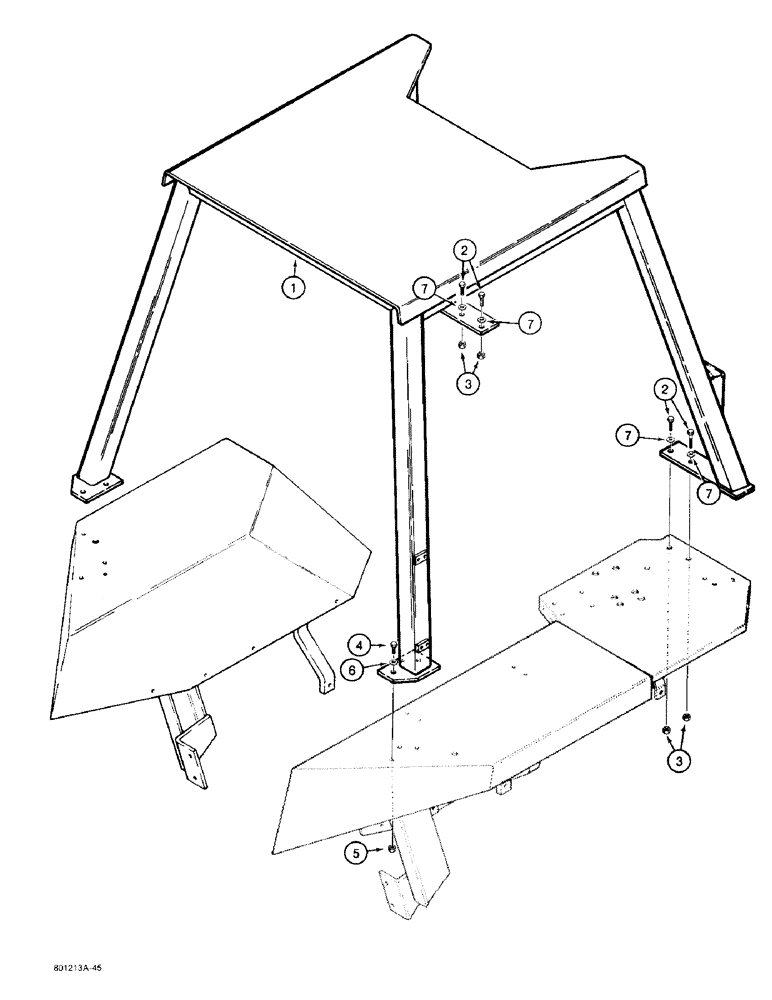

Запчасти Case 480F LL (9-156) - ROPS CANOPY, 480F LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, order from Machinery Price List

1шт.

2

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

4шт.

3

429-1010

NUT,5/8"-11, G8

4шт.

4

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

4шт.

6

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 1/2 inch, hardened

4шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

4шт.
