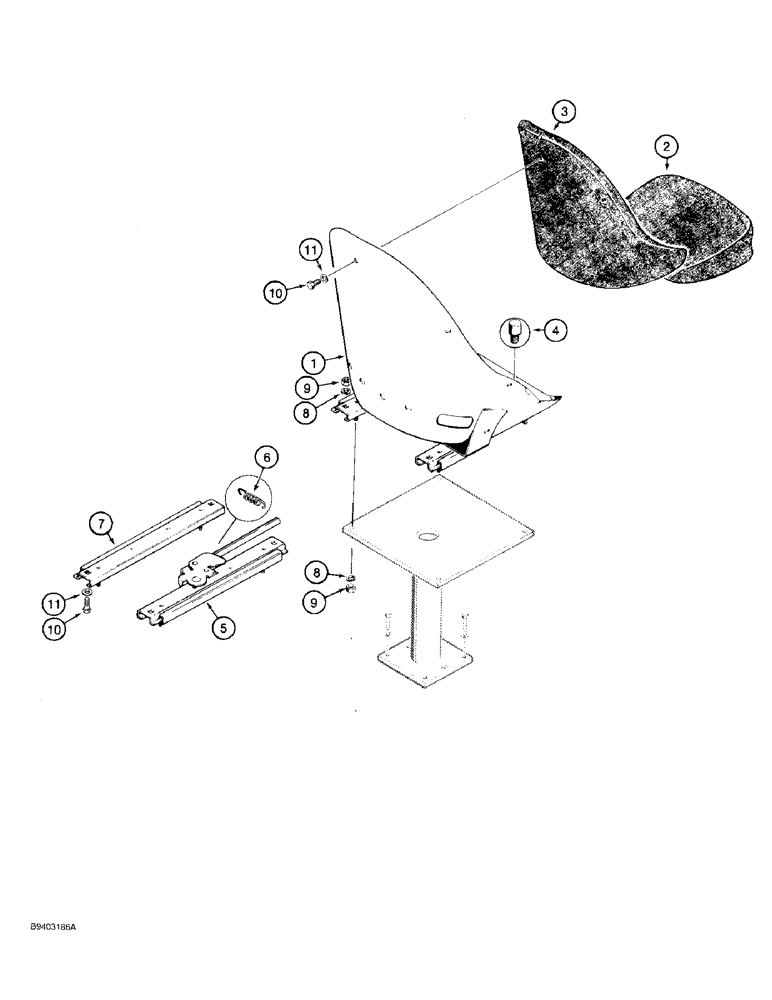

Запчасти Case 480F LL (9-115A) - D124790 DELUXE SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D124790

SEAT

ASSEMBLY - deluxe, bucket type, brown, side adjustment lever, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8761

CUSHION

- seat, brown

1шт.

3

N8762

CUSHION

- backrest, brown

1шт.

4

D77386

PIN

- cushion alignment

2шт.

5

D83178

ADJUSTER

SLIDE - right-hand adjuster, Includes: Ref. 6 and 3-1/2 inch handle

1шт.

6

L35503

SPRING

- return, slide

1шт.

7

L35272

ADJUSTER

SLIDE - left-hand, rail

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

9шт.
