Запчасти Case 480F LL (9-110) - SEAT MOUNTING PARTS AND SEAT BELT, STATIONARY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

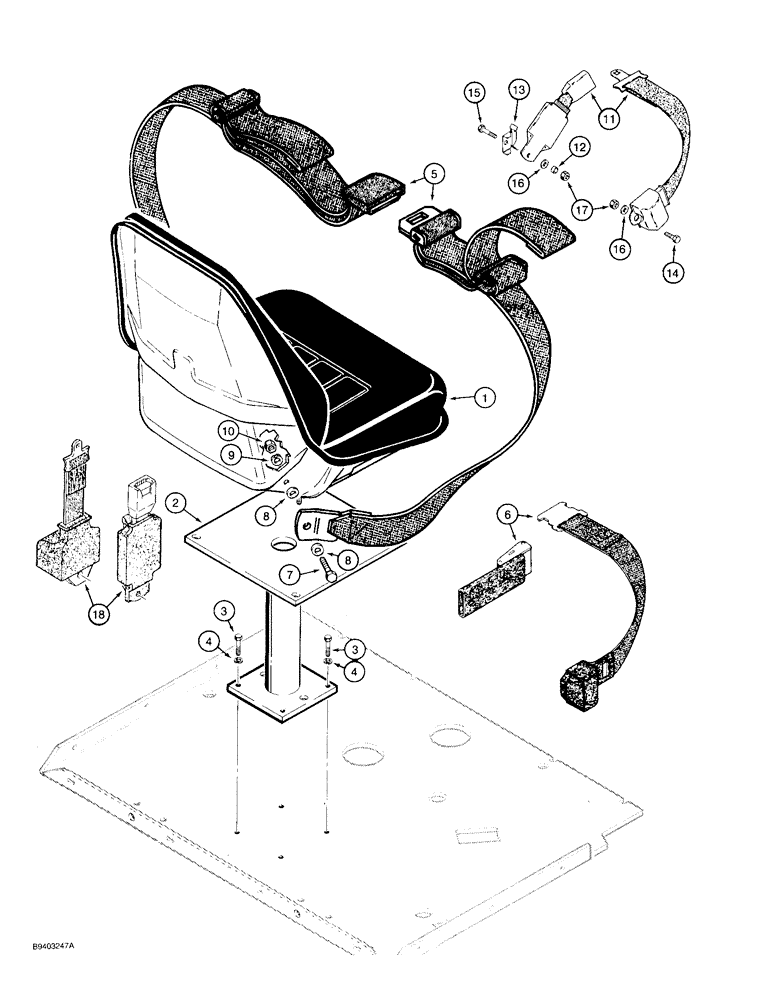

SEAT ASSEMBLY - operators, for correct assembly and components, see Figures 9-112 and 9-114

1шт.

2

D99301

POST

- seat mounting

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, with anti-creep slide, no longer available, for service order item 18, R58418 belt plus hardware items 12 through 17

1шт.

6

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, with retractor, no longer available, for service order items 11, D150377 seat belt plus hardware items 12 through 17

1шт.

7

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

Used with either item 5 or 6 seat belts Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

8

495-11047

WASHER,7/16", SAE

Used with either item 5 or 6 seat belts 7/16", SAE

4шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Used with either item 5 or 6 seat belts 7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, used with either item 5 or 6 seat belts

2шт.

11

D150377

SAFETY BELT ,2.00" W

With retractor, If used 2.00" W

1шт.

12

D150391

SPACER

- belt, used with either item 11 or 18 seat belt

1шт.

13

D150392

BRACKET

- left-hand belt, used with either item 11 or 18 seat belt

1шт.

14

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, used with either item 11 or 18 seat belt

1шт.

15

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, used with either item 11 or 18 seat belt

1шт.

16

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened, used with either item 11 or 18 seat belt

2шт.

17

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16 inch NF, used with either item 11 or 18 seat belt

2шт.

18

R58418

SAFETY BELT ,3.00" W

With retractor, If used 3.00" W

1шт.
