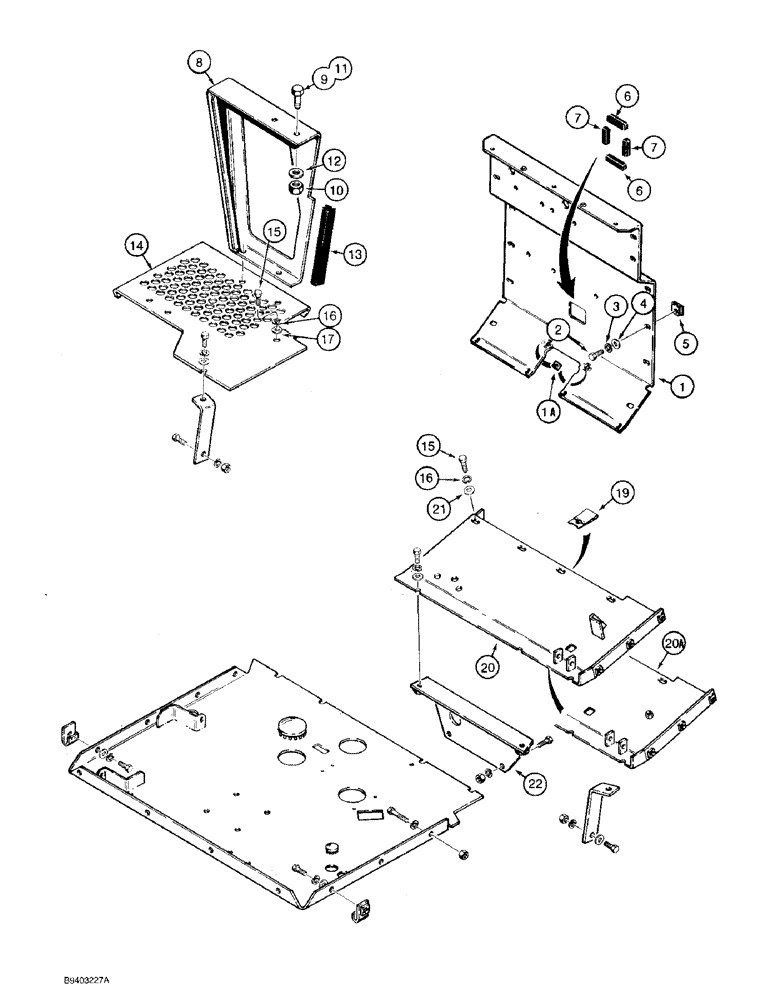

Запчасти Case 480F LL (9-104) - FLOOR PLATES AND FIREWALL, 480F LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D140402

WALL

FIREWALL - pedal mounting, Includes: Ref. 1A

1шт.

1a

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

12шт.

3

492-11038

LOCK WASHER,3/8"

12шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

5

D122307

NUT

NUT - J-type, 3/8 inch NC

12шт.

6

D36180

LINING

TRIM - edge, 2-1/4 inch (57 mm) long, cut from F42827 bulk, see below, firewall opening, horizontal

2шт.

7

D72356

LINING

TRIM - edge, 1-13/16 inch (46 mm) long, cut from F42827 bulk, see below, firewall opening, vertical

2шт.

8

D99394

PANEL

- front, left-hand

1шт.

9

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8, used on models with canopy

2шт.

10

429-1010

NUT,5/8"-11, G8

2шт.

11

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Used on models without canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

12

495-11066

WASHER,5/8", SAE

- flat, 5/8 inch, used on models without canopy

2шт.

13

REF

INSTRUCTION

TRIM - edge, 10-3/8 inch (263 mm) long, cut from D95814 bulk, see below, panel

1шт.

14

D99393

FLOOR

PLATE - floor entrance

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

16

492-11038

LOCK WASHER,3/8"

5шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

19

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8 inch NC, if used

4шт.

20

D143509

LARGE PLATE

PLATE - floor, used with straight throttle pedal and 22-1/2 inch throttle shaft, see Figure 3-04

1шт.

20a

D147429

PLATE ASSY.

PLATE - floor, used with angled throttle pedal and 18-1/2 inch throttle shaft, see Figure 3-04

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

22

D68457

BRACKET

- crossmember

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116 inch (2946 mm) long

1шт.

D95814

CHANNEL

TRIM - edge, 13-3/16 inch (335 mm) long

1шт.
