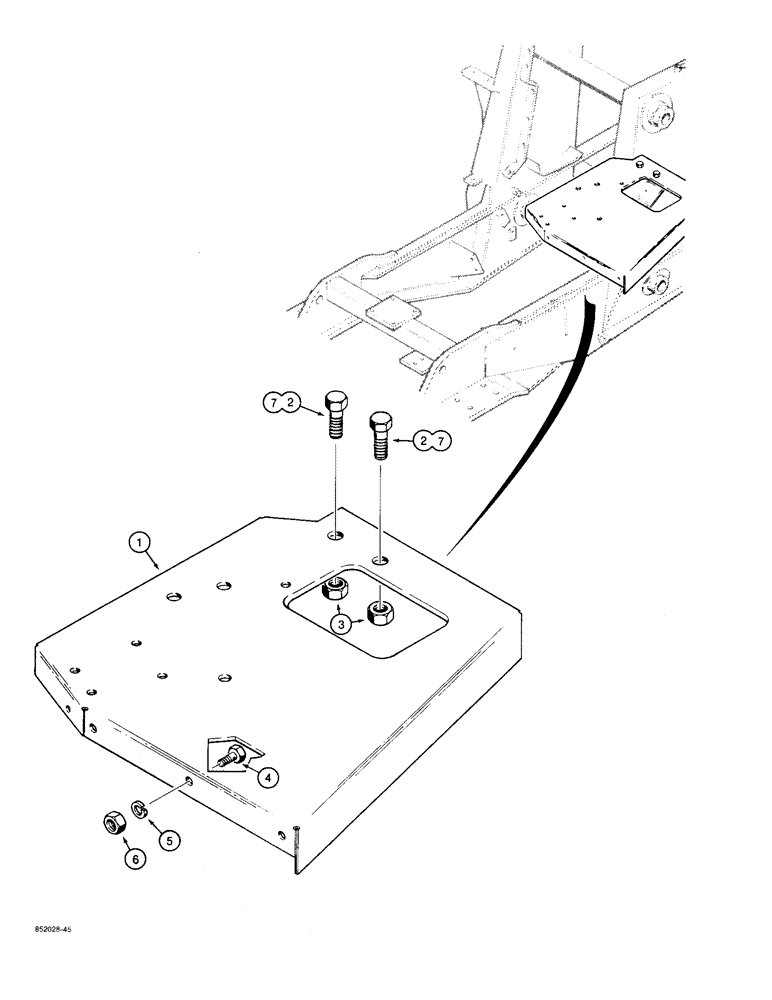

Запчасти Case 480F LL (9-098) - VALVE MOUNTING PLATE (09) - CHASSIS/ATTACHMENTS

1

D146668

VALVE COVER

PLATE - valve mounting, includes D145761, 321-3581, 321-5797 and 321-3718 decals, See Figures 9-162 and 9-164

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 8, Used on models with canopy

2шт.

3

429-1010

NUT,5/8"-11, G8

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

425-106

NUT,3/8"-16, Cl 5

3шт.

7

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Used on models without canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.
