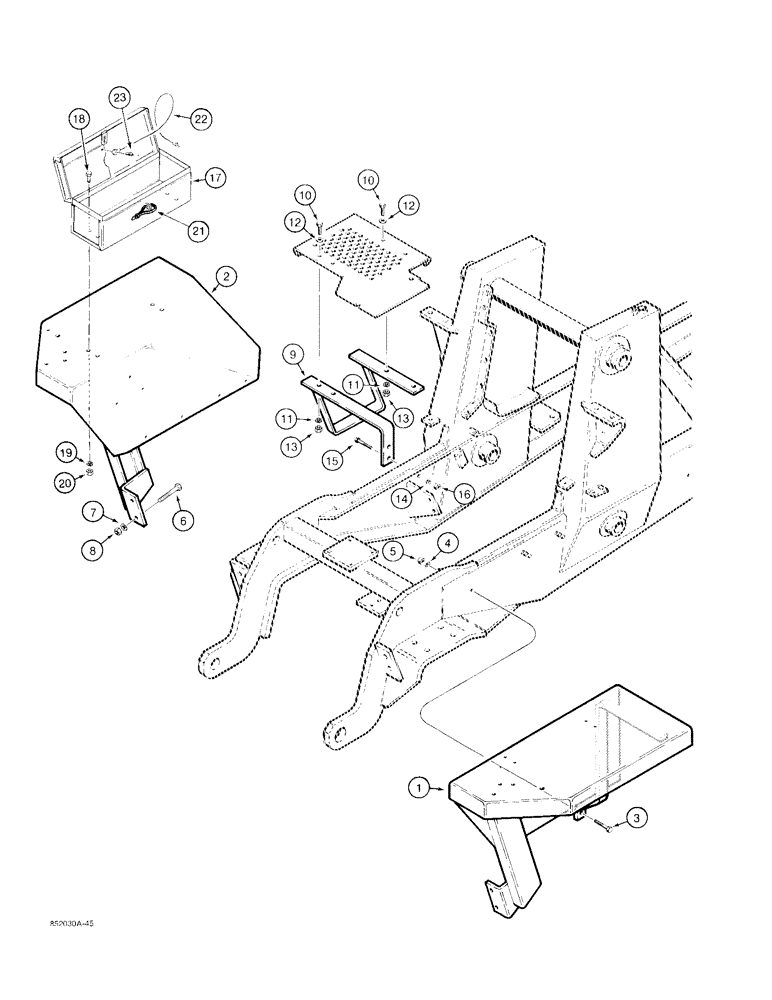

Запчасти Case 480F LL (9-092) - FENDERS, STEP, AND TOOL BOX, 480F LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D99302

FENDER

- rear, right-hand

1шт.

2

D131407

FENDER

- rear, left-hand, includes 321-6262, 321-3060 and 321-3705 decals, see Figure 9-162

1шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

6

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

4шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

429-1010

NUT,5/8"-11, G8

4шт.

9

D76746

STEP

- operators compartment

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

D124090

BOX, TOOL

BOX - tool, tractor, includes internal clip for operators manual

1шт.

18

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

BOLT - hex, 1/4 NC x 3/4 inch

4шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

D126821

CABLE

CORD - manual retaining, replaces R46465

1шт.

23

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16 inch

1шт.
