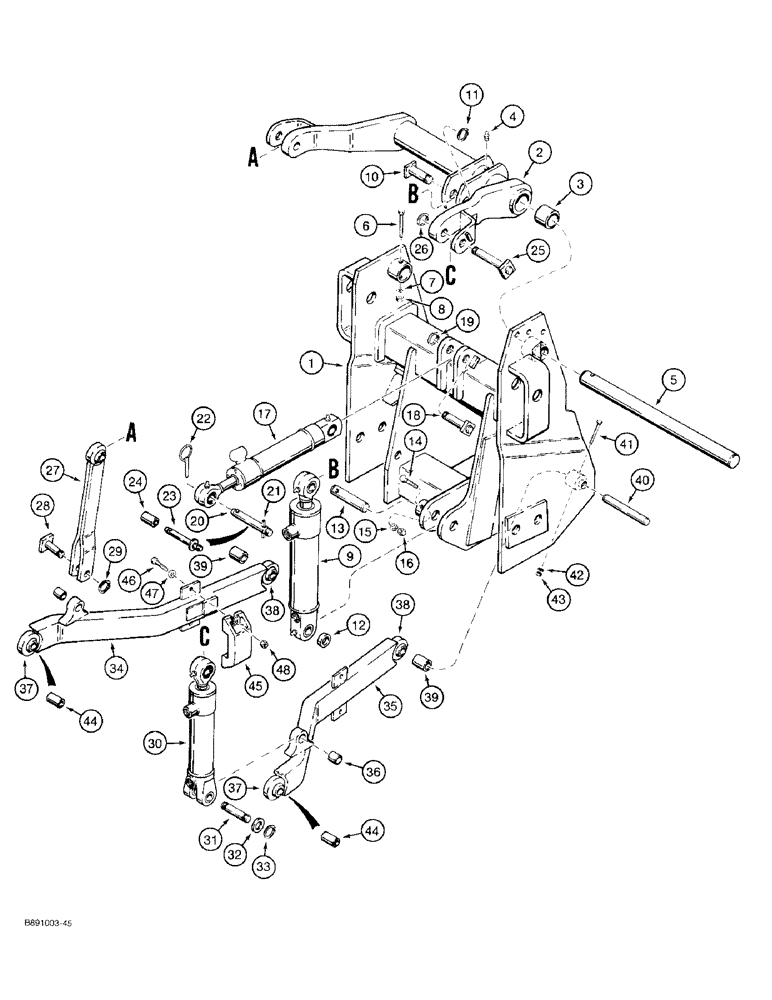

Запчасти Case 480F LL (9-072) - THREE-POINT HITCH DRAFT ARMS, LINKAGE, & CYL., MODELS W/OFFSET HITCH FRAME SIDES & 23-1/2" ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

D141091

FRAME ASSY

FRAME - three-point hitch

1шт.

2

D72875

TUBE,23.6" L

- rockshaft, 19-5/8 inch tube, bent links, Includes: Ref. 3

1шт.

3

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

5

D51569

SHAFT

ROCKSHAFT - hitch, 23-1/2 inch long

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Figure 8-144

1шт.

10

D51302

PIN

- mounting, lift cylinder, upper

1шт.

11

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

1шт.

12

D51692

SPACER

- lift cylinder mounting pin, lower

1шт.

13

D51695

PIN

- mounting, lift cylinder, lower

1шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

1976884C1

JACK BODY

CYLINDER ASSEMBLY - pitch, parts list Figure 8-148

1шт.

138235A1R

REMAN-HYD CYLINDER

480F, 480F LL both (9/89-), Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

18

D141090

PIN

- mounting, pitch cylinder at mounting frame

1шт.

19

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap, pin retaining

1шт.

20

115749A1

PIN

- 1 inch diameter, pitch cylinder to equipment, for use with category II hitch, if used, replaces D140990, Includes: Ref. 21

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

21

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

22

D33805

PIN

- lock

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

23

D141292

PIN

- 3/4 inch diameter, pitch cylinder to equipment, for use with category I hitch, if used

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

24

D141156

TUBE

BUSHING - pivot, pitch cylinder rod eye, used with D141292 pin to adapt for use with category I hitch, if used

2шт.

Required to convert a Category I to Category I-II hitch.

1шт.

25

D51299

PIN

- mounting, tilt cylinder and strut, upper

2шт.

26

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap, pin retaining

2шт.

27

D51276

STAND

STRUT - stationary

1шт.

Ball Joint end of Strut is P/N D51609.

1шт.

28

D51297

PIN

- mounting, strut, lower

1шт.

29

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap, pin retaining

1шт.

30

G101188

JACK BODY

CYLINDER ASSEMBLY - tilt, parts list Figure 8-146

1шт.

31

D30609

PIN,25.4mm OD x 95.25mm L

- mounting, tilt cylinder, lower

1шт.

32

495-11106

WASHER,1", SAE

- flat, 1 inch, plated, Cylinder alignment

2шт.

33

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pin retaining

2шт.

34

D150881

ARM

- draft, left-hand, replaces D141088, Includes: Ref. 36 - 38

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

35

D150880

ARM

- draft, right-hand, replaces D141087, Includes: Ref. 36 - 38

1шт.

Required to convert a Category I to Category I-II hitch.

1шт.

36

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm, 1 inch (25 mm) ID, if used

1шт.

37

H363424

BALL JOINT

BUSHING - self-aligning, 1-1/8 inch pin size, order 15-18

1шт.

38

D51609

BALL JOINT

BUSHING - self-aligning, 1 inch ID x 2-3/4 inch OD, if used

1шт.

38

D149451

BALL JOINT

BUSHING - self-aligning, 1 inch ID x 3-1/8 inch OD, if used

1шт.

39

D141104

TUBE

BUSHING - pivot, draft arm mounting pin

2шт.

Required to convert a Category I to Category I-II hitch.

1шт.

40

D50724

PIN,25.4mm OD x 160.27mm L

- mounting, draft arm to mounting frame

2шт.

41

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

42

492-11038

LOCK WASHER,3/8"

2шт.

43

425-106

NUT,3/8"-16, Cl 5

2шт.

44

D140991

BUSHING,22.48mm ID x 28.57mm OD x 44.45mm L

- draft arm to equipment, for use with category I hitch, if used

2шт.

Required to convert a Category I to Category I-II hitch.

1шт.

45

D141085

CASTING

RETAINER - sway, draft arm

2шт.

46

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

Required to convert a Category I to Category I-II hitch.

1шт.

47

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

Required to convert a Category I to Category I-II hitch.

1шт.

48

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

Required to convert a Category I to Category I-II hitch.

1шт.
