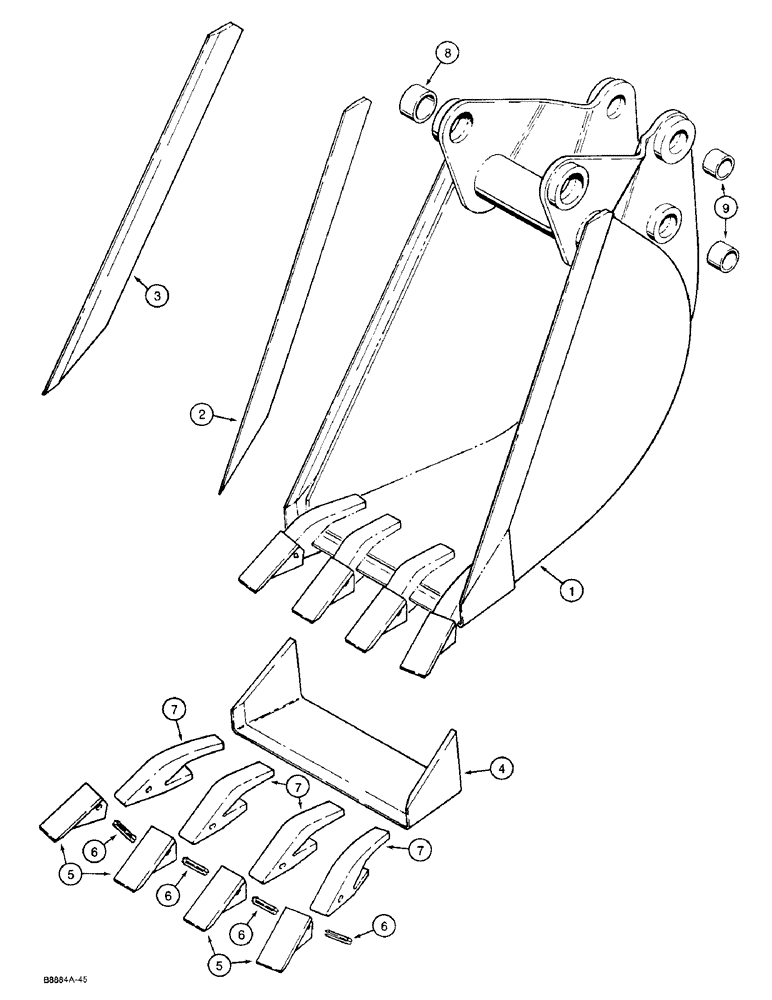

Запчасти Case 480F LL (9-063A) - BACKHOE BUCKETS, 18 INCH (457 MM) AND 24 INCH (610 MM) WIDE TRENCHING BUCKETS & TEETH (09) - CHASSIS/ATTACHMENTS

1

D139795

BUCKET

ASSEMBLY - 18 inch (457 mm) wide, with 4 teeth, trenching, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37642

EDGE, CUTTING

EDGE - cutting, center, 18 inch (457 mm) bucket

1шт.

D41659

TOOTH

ASSEMBLY - trenching bucket, Includes: Ref. 5 - 7

4шт.

5

D39093

TOOTH

POINT - tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

4шт.

1

D139796

BUCKET

ASSEMBLY - 24 inch (610 mm) wide, with 5 teeth, trenching, not shown, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37507

EDGE

- cutting, center, 24" (610 mm) bucket

1шт.

D41659

TOOTH

ASSEMBLY - trenching bucket, Includes: Ref. 5 - 7

5шт.

5

D39093

TOOTH

POINT - tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

4шт.
