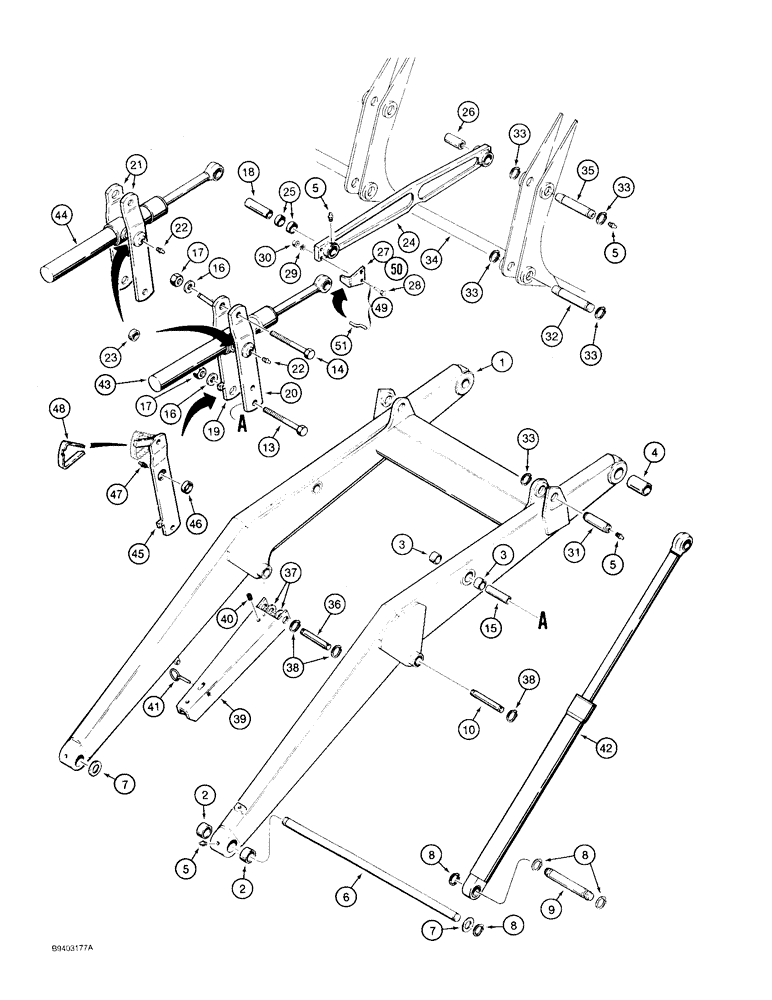

Запчасти Case 480F LL (9-008) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D146332

ARM

FRAME - loader lift, Includes: Ref. 2 - 4

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- loader frame pivot

4шт.

3

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

Bucket cylinder link pivot, Replaces D37763

4шт.

4

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- bucket mounting

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

8шт.

6

D129819

SHAFT

- pivot

1шт.

7

D143409

WASHER,44.86mm ID x 63.5mm OD x 3.31mm Thk

- flat

1шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

8шт.

9

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - lift cylinder pivot

2шт.

10

D44881

PIN,38.1mm OD x 136.4mm L

- lift cylinder to frame, right-hand

1шт.

13

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

2шт.

14

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

- hex, 1 NC x 5-1/2 inch

2шт.

15

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

SPACER - bushing

2шт.

16

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

4шт.

17

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

18

D90422

BUSHING

SPACER - bushing

2шт.

19

D124047

LINK

- bucket cylinder, right-hand, inner, models without clam bucket, see Ref. 45

1шт.

20

D124045

LINK

- bucket cylinder, right-hand, outer, with extra hole for antirollback rod, Includes: Ref. 22 and 23

1шт.

21

D124045

LINK

- bucket cylinder, left-hand, inner and outer, extra hole not used in left-hand position, Includes: Ref. 22 and 23

2шт.

22

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch, one per each link

1шт.

23

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link, one per each link

1шт.

24

D126881

LINK

- bucket, may replace links without bushings on some models, replaces D120494, Includes: Ref. 25 and 26

2шт.

25

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket cylinder link

2шт.

26

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- at bucket

1шт.

27

D121194

POINTER

- right-hand inner link, models without clam bucket, see Ref. 49

1шт.

28

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

31

D89321

PIN

- bucket cylinder mounting

2шт.

32

D126717

PIN,38.1mm OD x 179.83mm L

- bucket mounting, lower

2шт.

32

D126718

PIN,38.1mm OD x 179.83mm L

- bucket mounting, lower - grease able

2шт.

33

D25279

SNAP RING,M35, Int

- retaining

12шт.

34

REF

INSTRUCTION

BUCKET - loader, see Figures 9-014 and 9-016 for buckets

1шт.

35

D126718

PIN,38.1mm OD x 179.83mm L

- bucket mounting, upper

2шт.

36

D28649

PIN

- lift cylinder to frame, left-hand, if used

1шт.

37

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

38

D25279

SNAP RING,M35, Int

RING - snap, retaining

4шт.

39

D121846

STRUT

- support, loader frame

1шт.

40

D121047

GROMMET

- support strut

2шт.

41

104824A1

PIN,12.7mm OD

lock, 1/2" diameter, Replaces D102675 and L78801 pins

1шт.

42

1340792C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader lift, parts list Figure 8-122

2шт.

43

G101186

CYLINDER

ASSEMBLY - loader bucket, right-hand, parts list Figure 8-124

1шт.

44

G101187

CYLINDER

ASSEMBLY - loader bucket, left-hand, parts list Figure 8-124

1шт.

45

D121290

LINK

- bucket cylinder, right-hand, models with clam bucket, Includes: Ref. 46 and 48

1шт.

46

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

47

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

1шт.

48

D120544

BAR

INDICATOR - bucket position

1шт.

49

D123157

SUPPORT

POINTER ASSEMBLY - right-hand inner link, models with clam bucket, Includes: Ref. 50 and 51

1шт.

50

D121194

POINTER

- gauge

1шт.

51

D120546

INDICATOR

ROD - pointer

1шт.
