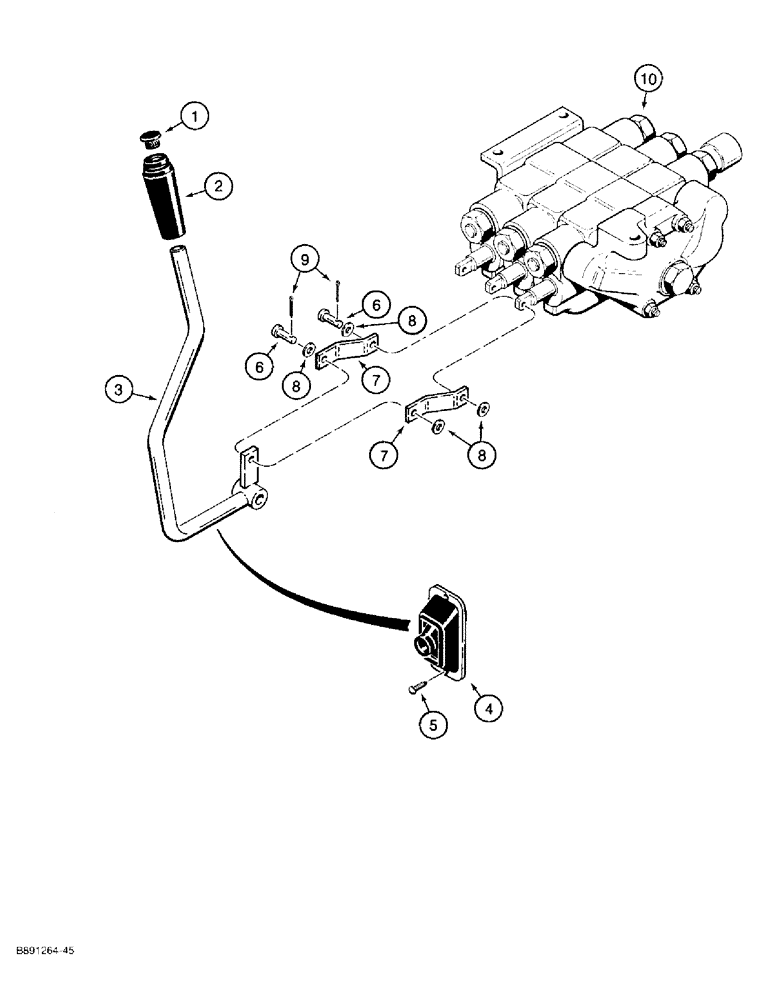

Запчасти Case 480F LL (9-004) - LOADER CONTROLS - CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, control lever

1шт.

2

D91439

TUBE

KNOB - control lever

1шт.

3

D146340

LEVER ASSY.

LEVER - loader clam control

1шт.

4

D72302

BOOT

- control lever

1шт.

5

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan head slotted, No. 10-16 x 1/2 inch

2шт.

6

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

7

D146559

LINK

- control, Serial Range: lever-spool

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

10

1343681C1

VALVE

ASSEMBLY - loader control, parts list Figure 8-072, for mounting see Figure 9-002

1шт.
