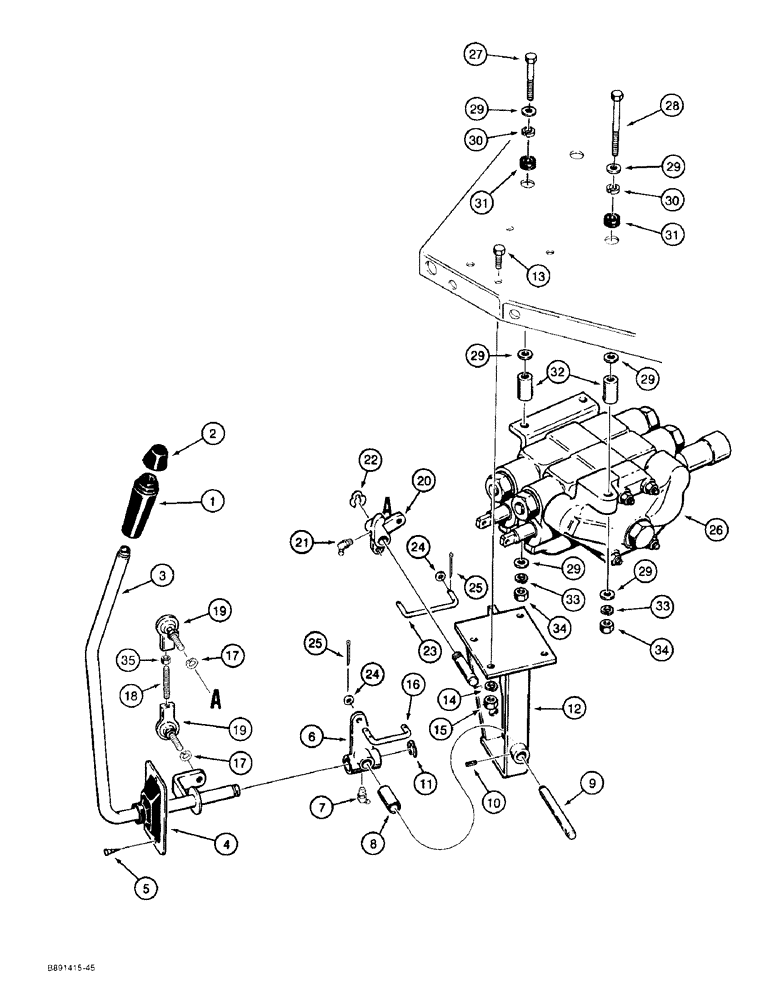

Запчасти Case 480F LL (9-002) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB - control lever, see Figure 4-20 for clutch cutout switch and wire

1шт.

2

D138252

BOOT

COVER - switch, see Figure 4-20 for switch

1шт.

3

D146387

LEVER ASSY.

LEVER - loader control, lift and bucket

1шт.

4

D72302

BOOT

- control lever, used on 480F models only

1шт.

5

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - pan head, self-tapping, No. 10-16 x 1/2 inch

2шт.

6

D99750

BLOCK

- pivot

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

8

D81147

SPACER

SLEEVE - spacer, shaft, models with two spool valve only

1шт.

9

D64790

SHAFT

- pivot block

1шт.

10

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

11

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING - retaining, control lever

1шт.

12

D146674

BRACKET

- control lever and linkage

1шт.

ITEM 12 - D146674- SHAFT WELDED TO IT IS D64791 BURLINGTON PART

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

D127648

LINK

- connecting, lift spool

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

D37549

STUD

- 3/8 NF x 1-5/8 inch, ball joint linkage

1шт.

19

D64925

JOINT

- ball, 3/8", short, bucket spool

2шт.

20

D72232

CRANK

BELLCRANK - bucket spool

1шт.

#20 p/n D72232 pin(shaft) coming off p/n d72232, weldment shaft p/n d64791 or complete bracket p/n d146674 csd 4/8/99

1шт.

21

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

22

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

1шт.

23

D121193

LINK

- connecting, bucket spool

1шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

25

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figures 8-070 and 8-072

1шт.

27

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

28

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 7/16 x 1 x 5/64 inch

9шт.

30

D123465

SPACER

- split

3шт.

31

D64797

GROMMET

- control valve mounting

3шт.

32

D64745

SPACER

- control valve mounting

3шт.

33

492-11038

LOCK WASHER,3/8"

3шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.

35

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.
