Запчасти Case 480F LL (8-146) - THREE-POINT HITCH TILT CYLINDER (08) - HYDRAULICS

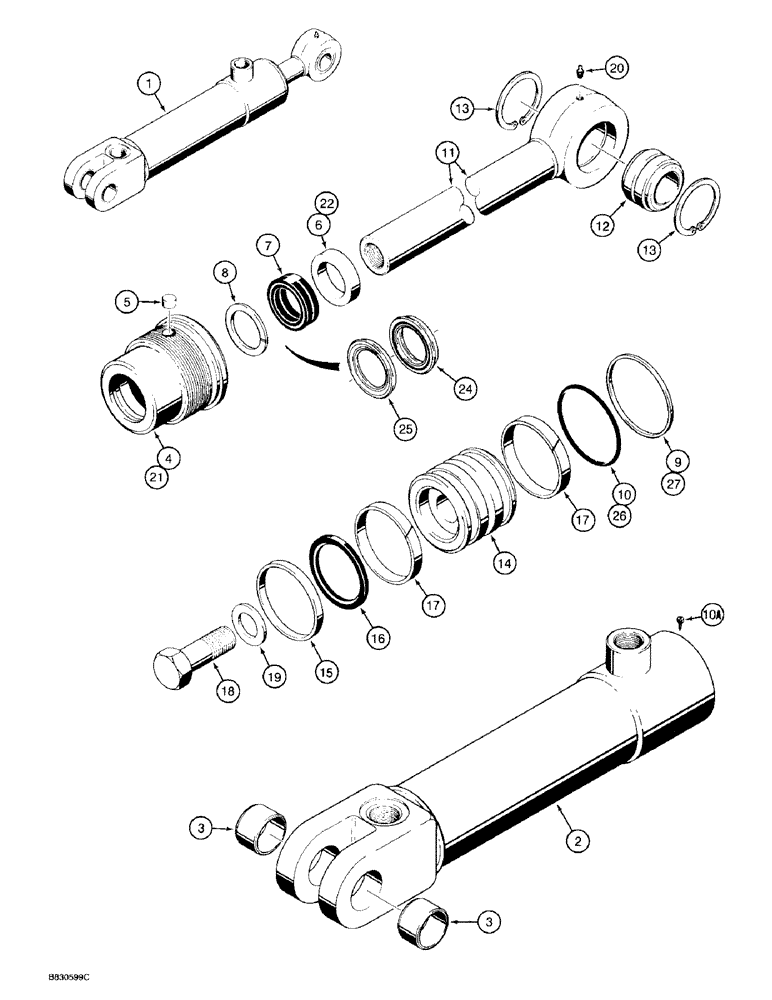

Схема запчастей Case 480F LL - (8-146) - THREE-POINT HITCH TILT CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G101188

JACK BODY

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 6-19/64 inch (160 mm) stroke, tilt, Includes: Ref. 2 - 27

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G32313

TUBE,14.43" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube

2шт.

G104915

GLAND

ASSEMBLY - cylinder, has smooth outer lip, Includes: Ref. 4 - 10, no longer available, order Ref. 21, 1542939C1 gland and 1543250C1 seal kit

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N G109475.

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of seal kit P/N G109475.

1шт.

7

G100775

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109475.

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109475.

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of seal kit P/N G109475.

1шт.

10a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

G33352

ROD

ASSEMBLY - piston, 1-1/4 inch (32 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod, self-aligning

1шт.

13

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

14

G100708

PISTON

- cylinder

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109475.

1шт.

16

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G109475.

1шт.

17

G100714

RING

- wear, piston

2шт.

Part of seal kit P/N G109475.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 21 - 27

1шт.

21

1542939C1

CYLINDER END CAP

GLAND - cylinder, has identification groove on outer lip

1шт.

22

D95141

WIPER SEAL

WIPER - piston rod

1шт.

23

1542873C1

PACKAGE

KIT - seal, NSS, not shown, Includes: Ref. 24 and 25

1шт.

24

1543006C1

SEAL - rod, NSS, order 1543250C1 kit below

1шт.

25

1543005C1

SEAL - buffer, NSS, order 1543250C1 kit below

1шт.

26

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

27

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

G109475

GASKET KIT

KIT - seal, Includes: Ref. 6, 7 (P/N D36968), 8 - 10 and 15 - 17, no longer available, order 1543250C1 seal kit below

1шт.

1543250C1

SEAL KIT

KIT - seal, Includes: Ref. 8, 15 - 17, 22 - 27 and an instruction sheet

1шт.
