Артикул
Название
Примечание
Количество

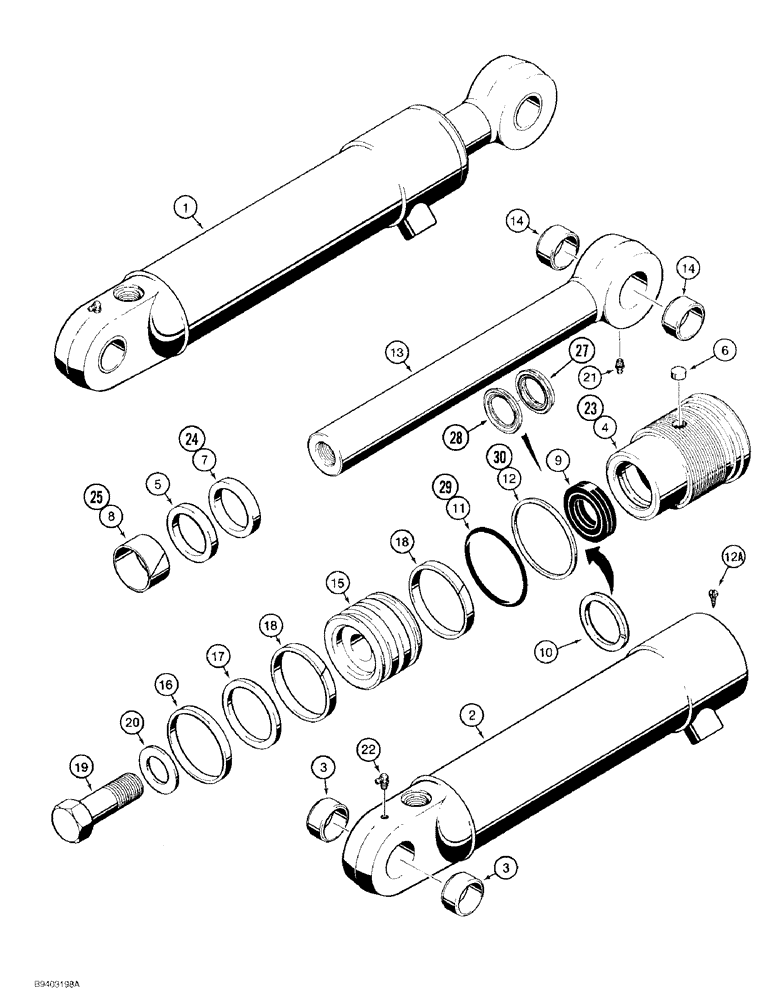

1
G101190
CYLINDER ASSY.
CYLINDER ASSEMBLY - 3 inch (76 mm) ID x 9 inch (229 mm) stroke, clam, right-hand, Includes: Ref. 1 - 30, no longer available, order 1346189C1 cylinder assembly, Figure 8-127A plus D148190 tube, Figure 8-016, Ref. 27
1шт.
The cylinder assembly part number is stamped on some cylinder glands or tubes.
1шт.
1
87454017R
REMAN-HYD CYLINDER
1шт.
1
87454017C
CORE-HYD CYLINDER
Return Number
1шт.
1
G101191
CYLINDER ASSY.
CYLINDER ASSEMBLY - 3 inch (76 mm) ID x 9 inch (229 mm) stroke, clam, left-hand, Includes: Ref. 1 - 30, no longer available, order 1346190C1 cylinder assembly, Figure 8-127A plus D148192 tube, Figure 8-016, Ref. 26
1шт.
The cylinder assembly part number is stamped on some cylinder glands or tubes.
1шт.
2
G32305
HYD TUBE,435.1 mm L
TUBE ASSEMBLY - right-hand cylinder, Includes: Ref. 3
1шт.
2
G32304
HYD TUBE
TUBE ASSEMBLY - left-hand cylinder, Includes: Ref. 3
1шт.
3
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- tube
2шт.
G104240
GLAND
ASSEMBLY - cylinder, Includes: Ref. 4 - 12, no longer available, order Ref. 23, 1542986C1 gland and 1543262C1 seal kit below
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
NSS
NOT SOLD SEPARAT
RING - retaining, bushing
1шт.
6
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
7
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod, outer
1шт.
Part of seal kit P/N G109460.
1шт.
8
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
- center
1шт.
Part of seal kit P/N G109460.
1шт.
9
G107922
SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk
- U-cup, with O-ring, piston rod, wide
1шт.
Part of seal kit P/N G109460.
1шт.
9
G100777
SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk
- U-cup, piston rod, service option - severe heat or cold
1шт.
10
G109094
SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk
- buffer, grooved, piston rod, narrow
1шт.
Part of seal kit P/N G109460.
1шт.
12
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup, gland O-ring
1шт.
Part of seal kit P/N G109460.
1шт.
12a
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used
1шт.
13
G33800
PISTON ROD
ROD ASSEMBLY - piston, 1-3/4 inch (44 mm) diameter, Includes: Ref. 14
1шт.
14
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- piston rod
2шт.
15
G100704
PISTON
- cylinder
1шт.
Part of seal kit P/N G109460.
1шт.
Part of seal kit P/N G109460.
1шт.
Part of seal kit P/N G109460.
1шт.
19
25974R1
BOLT,Hex, 1" - 14 x 2 1/2", Gr 8
- hex, 1 NS x 2-1/2 inch, grade 8
1шт.
20
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- hardened
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
1шт.
22
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
NSS
NOT SOLD SEPARAT
GLAND ASSEMBLY - cylinder, Includes: Ref. 23 - 30
1шт.
23
1542986C1
CYLINDER END CAP
GLAND - cylinder
1шт.
24
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod
1шт.
25
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
- center
1шт.
26
SEAL KIT,44.4mm Rod
KIT, SEALS, NSS, Not shown, Order 1543262C1, Incl Ref 27 and 28
1шт.
27
1542999C1
SEAL
- rod, NSS, order 1543262C1 seal kit below
1шт.
28
1542998C1
SEALING RING
- buffer, NSS, order 1543262C1 seal kit below
1шт.
30
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup
1шт.
G109460
GASKET KIT
KIT - seal, Includes: Ref. 7 - 9 (P/N G107922), 10, 12 and 16 - 18, order 1543262C1
1шт.
1543262C1
SEAL KIT
KIT - seal, Includes: Ref. 10, 16 - 18, 24 - 30 and an instruction sheet
1шт.
