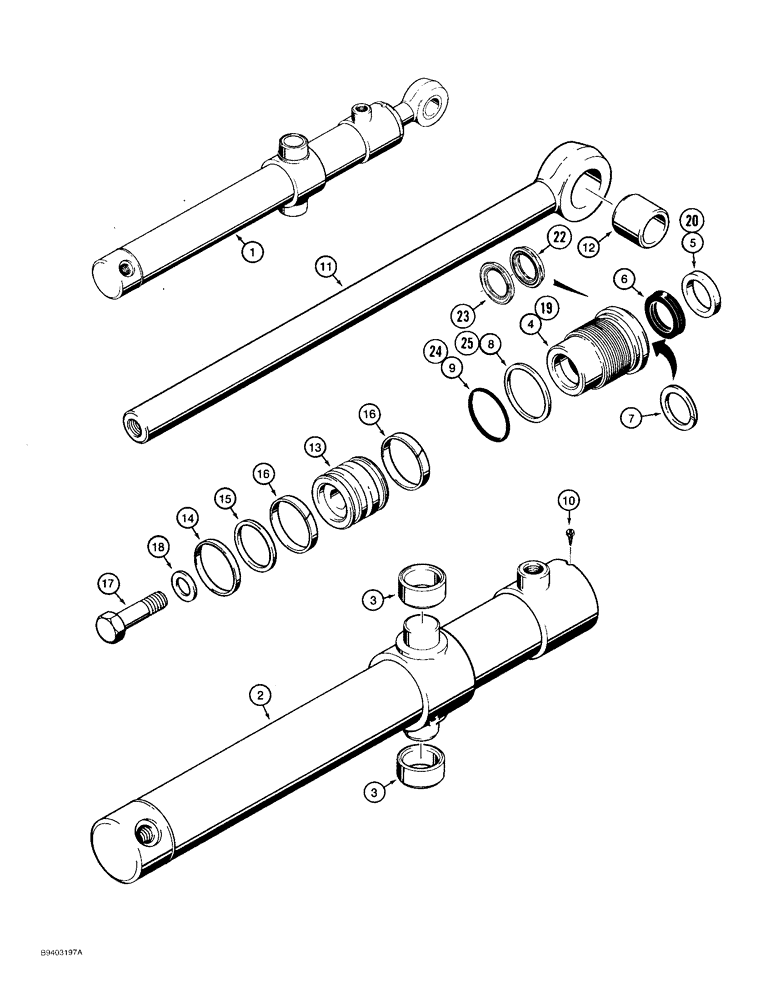

Запчасти Case 480F LL (8-124) - G101186 AND G101187 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G101186

CYLINDER

ASSEMBLY - 2-1/2 inch (64 mm) ID x 20 inch (508 mm) stroke, bucket, right-hand, Includes: Ref. 2 - 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G101187

CYLINDER

ASSEMBLY - 2-1/2 inch (64 mm) ID x 20 inch (508 mm) stroke, bucket, left-hand, Includes: Ref. 2 - 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

D31098

TUBE

ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

2

D31099

TUBE

ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube trunnion

2шт.

G104008

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 19, 1542960C1 gland and 1543253C1 seal kit below, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109456.

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G109456.

1шт.

6

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109456.

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109456.

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109456.

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

G33422

ROD

ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, Includes: Ref. 12

1шт.

12

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.

13

G100706

PISTON

- cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109456.

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G109456.

1шт.

16

G100714

RING

- wear, piston

2шт.

Part of seal kit P/N G109456.

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 19 - 25

1шт.

19

1542960C1

GLAND

- cylinder

1шт.

20

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

21

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Not shown, Order 1543253C1, Incl Ref 22 and 23

1шт.

22

1542997C1

SEALING RING

- rod, NSS, order 1543253C1 kit below

1шт.

23

1542996C1

SEAL

- buffer, NSS, order 1543253C1 kit below

1шт.

24

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

25

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

G109456

GASKET KIT

KIT - seal, Includes: Ref. 5, 6 (P/N G107921), 7 - 9 and 14 - 16, no longer available, order 1543253C1 kit below

1шт.

1543253C1

SEAL KIT,Repair, 63.5 x 38.1

KIT - seal, Includes: Ref. 7, 14 - 16, 20 - 25 and an instruction sheet

1шт.
