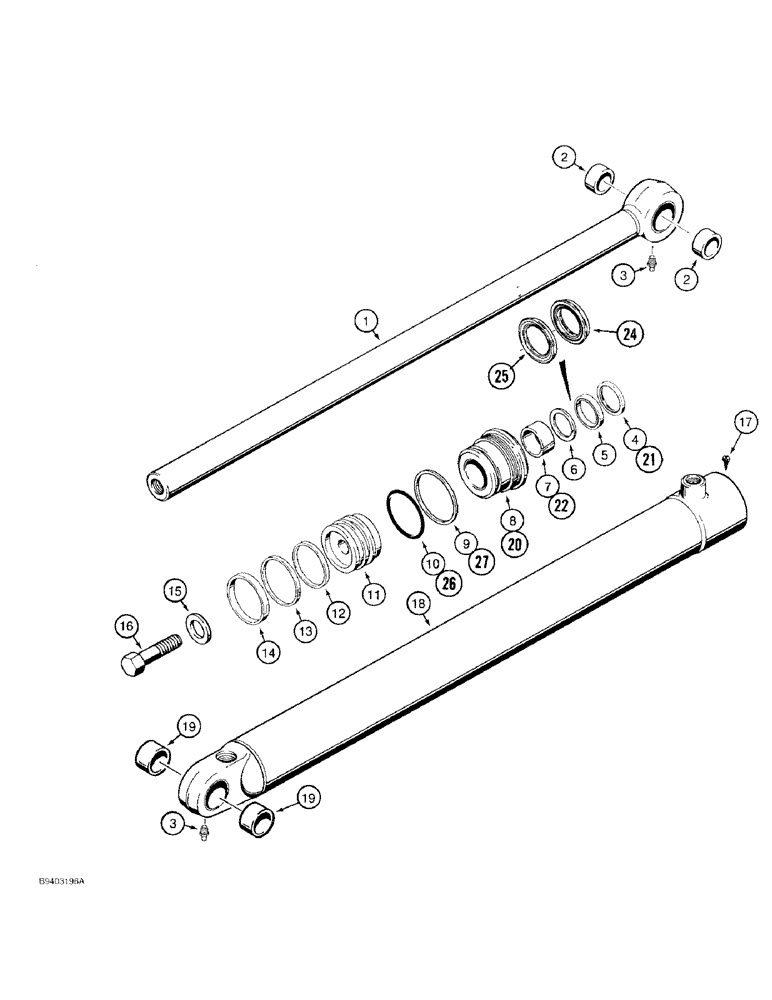

Запчасти Case 480F LL (8-122) - 1340792C1 LOADER LIFT CYLINDER (08) - HYDRAULICS

1340792C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 inch (76 mm) ID x 32 inch (813 mm) stroke, lift, Includes: Ref. 1 - 27

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1340801C1

PISTON ROD

ROD ASSEMBLY - piston, 1-3/4 inch (44 mm) diameter, Includes: Ref. 2

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1340796C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 20, 1340795C1 gland and 1543267C1 seal kit below, Includes: Ref. 4 - 10

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110049.

1шт.

5

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049.

1шт.

5

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

6

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049.

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G110049.

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110049.

1шт.

10

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110049.

1шт.

11

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

- cylinder

1шт.

12

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G110049.

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049.

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of seal kit P/N G110049.

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

16

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NS x 2-1/2 inch, grade 8

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

18

1340793C1

TUBE,995 mm Length

ASSEMBLY - cylinder, Includes: Ref. 19

1шт.

19

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

- tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 20 - 27

1шт.

20

1340795C1

GLAND

- cylinder

1шт.

21

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

22

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

23

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Order 1543267C1, Incl Ref 24 and 25

1шт.

24

1542999C1

SEAL

- rod, NSS, order 1543267C1 kit below

1шт.

25

1542998C1

SEALING RING

- buffer, NSS, order 1543267C1 kit below

1шт.

26

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

27

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

G110049

KIT

- seal, Includes: Ref. 4, 5 (P/N G107922), 6, 7, 9, 10 and 12 - 14, no longer available, order 1543267C1 kit below

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 12 - 14, 21 - 27 and an instruction sheet

1шт.
