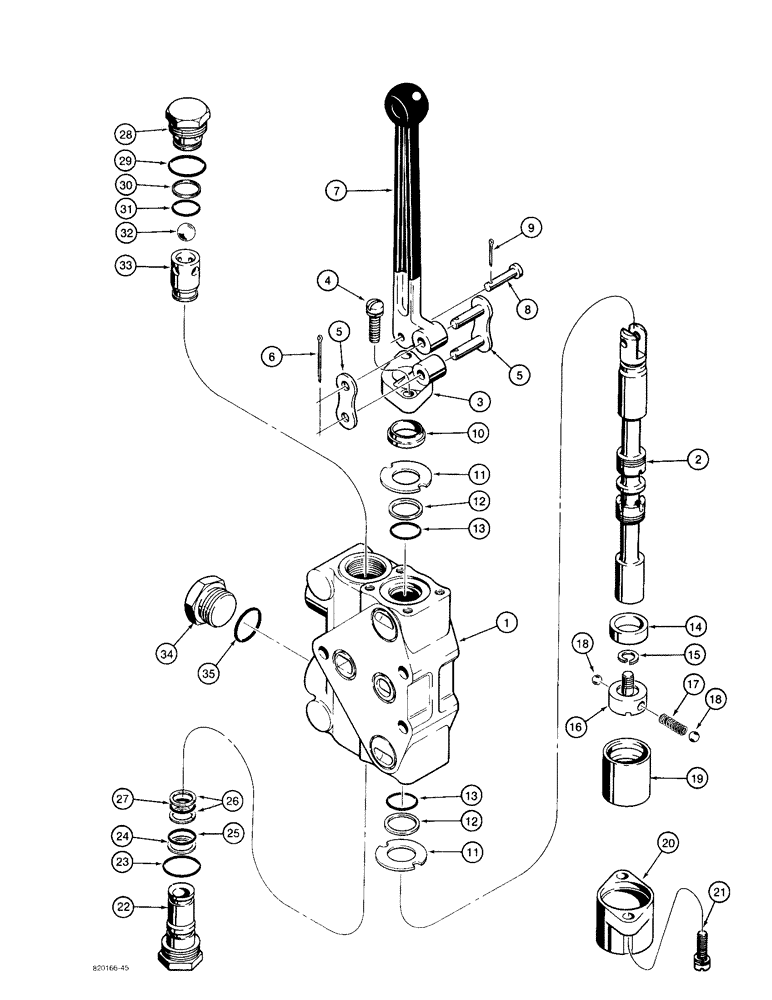

Запчасти Case 480F LL (8-114) - PTO AND THREE-POINT HITCH CONTROL VALVES, PTO SECTION (08) - HYDRAULICS

N7899

PTO

SECTION ASSEMBLY - PTO, used in D122151 control valve and as a fifth spool with D122164 or 101841A1 control valve, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- slotted Fillister, with lock washer, 1/4 NC x 7/8 inch

2шт.

5

36640

DRAG LINK

LINK ASSEMBLY - bracket to control rod, replaces H620344

1шт.

6

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

7

N7113

HANDLE

LEVER - section control

1шт.

8

D88727

PIN

- control rod to spool eye

1шт.

9

432-58

COTTER PIN,5/64" x 1/2"

5/64" x 1/2"

1шт.

10

N7029

SCRAPER

WIPER - spool

1шт.

11

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

2шт.

12

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, spool O-ring

2шт.

13

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool seal

2шт.

14

N7905

STOP

COLLAR - spool stop

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

N7903

HOLDER

RETAINER - detent

1шт.

17

H325092

SPRING

- detent

1шт.

18

211-206

BALL,1/4" Dia

- detent, 1/4 inch diameter

2шт.

19

N7904

SLEEVE

- detent

1шт.

20

H267583

FITTING

CAP - valve spool

1шт.

21

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- slotted Fillister, with lock washer, 1/4 NC x 7/8 inch

2шт.

N7900

PLUG

ASSEMBLY - lower port, Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

24

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve, center -016, 90 Duro, .614" ID x .070" Thk

1шт.

26

D88725

BACK-UP RING

RING - backup, inner O-ring

2шт.

27

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner

1шт.

N7901

VALVE, CHECK

ANTICAVITATION ASSEMBLY - upper port, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - anticavitation

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

30

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve, center -016, 90 Duro, .614" ID x .070" Thk

1шт.

32

211-212

BALL

- steel

1шт.

33

N7902

RETAINER

- ball

1шт.

34

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube, Includes: Ref. 35 Hex Hd, 1 1/16"-12 ORB

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.
