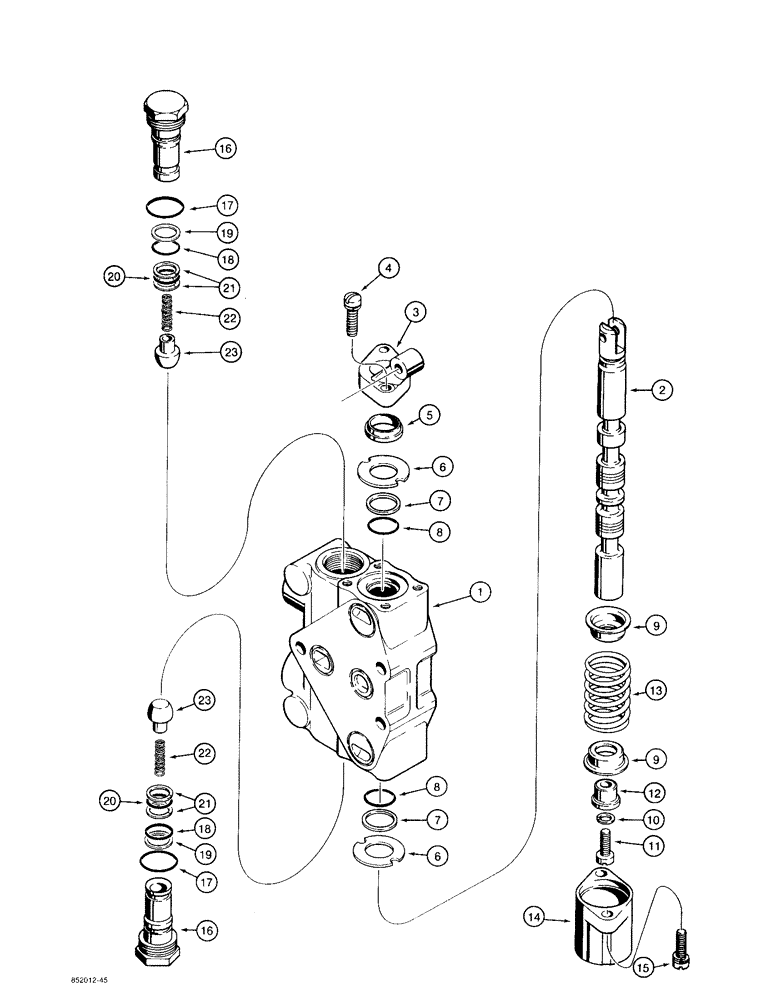

Запчасти Case 480F LL (8-112) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT, AND IMPLEMENT SECTIONS (08) - HYDRAULICS

N8691

KNIFE SECTION

SECTION ASSEMBLY - hitch pitch, tilt, and implement, used in four and five spool control valves, Includes: Ref. 1 - 23

2-4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- slotted Fillister, with lock washer, 1/4 NC x 7/8 inch

2шт.

5

N7029

SCRAPER

WIPER - spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

2шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

RING - backup, O-ring

2шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool seal

2шт.

9

H267591

SPRING SEAT

SEAT - centering spring

2шт.

10

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

- machine, Fillister head, 5/16 NC x 3/4 inch, order 169-154

1шт.

12

H267609

REAR FENDER

COLLAR - spool

1шт.

13

D87306

SPRING

- centering, spool

1шт.

14

H267583

FITTING

CAP - valve spool

1шт.

15

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- slotted Fillister, with lock washer,1/4 NC x 7/8 inch

2шт.

D87307

VALVE

ASSEMBLY - load check, valve section, Includes: Ref. 16 - 23

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve, center -016, 90 Duro, .614" ID x .070" Thk

1шт.

19

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

20

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner

1шт.

21

D88725

BACK-UP RING

RING - backup, inner O-ring

2шт.

22

H268730

SPRING

- poppet

1шт.

23

D28576

VALVE POPPET

POPPET - load check valve

1шт.
