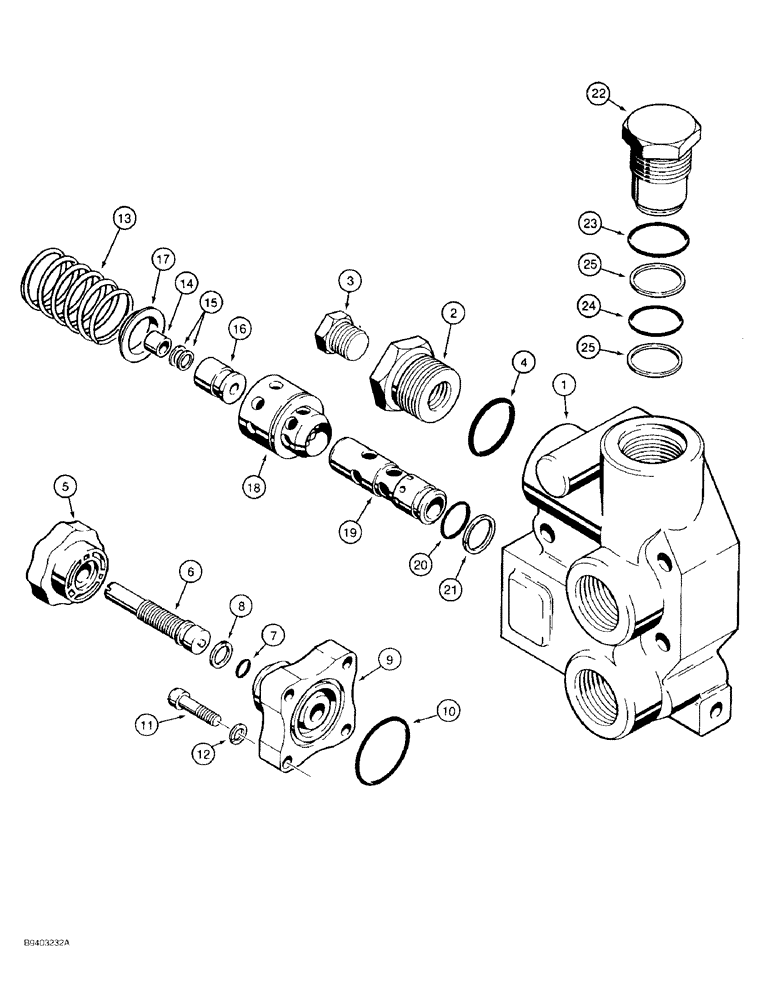

Запчасти Case 480F LL (8-108) - THREE-POINT HITCH CONTROL VALVE, INLET-OUTLET SECTION (08) - HYDRAULICS

D122551

VALVE

SECTION ASSEMBLY - inlet-outlet, uses plug in place of main relief valve, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet-outlet section

1шт.

N7109

PLUG

ASSEMBLY - section port, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - section port

1шт.

3

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

N7111

GOVERNOR

REGULATOR ASSEMBLY - flow control, Includes: Ref. 5 - 12

1шт.

5

D54188

KNOB

- regulator assembly

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Adjusting screw -012, 90 Duro, .364" ID x .070" Thk

1шт.

8

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - regulator

1шт.

10

A16755

O-RING

- cover

1шт.

11

61-32514

HEX SOC SCREW,1/4"-20 x 7/8"

BOLT - hex socket, 1/4 NC x 7/8 inch

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

N7110

CONTROL

ASSEMBLY - flow, Includes: Ref. 13 - 21

1шт.

13

L35302

SPRING

- flow control

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - piston

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - sleeve

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - flow control

1шт.

17

L35301

CUPEL

COLLAR - metering sleeve

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - metering

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - sleeve, flow control

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Valve -016, 90 Duro, .614" ID x .070" Thk

1шт.

21

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, O-ring

1шт.

D87301

PLUG

ASSEMBLY - main relief port, order components Ref. 22 - 25

1шт.

22

D87302

PLUG

- main relief port

1шт.

23

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

Plug -023, 90 Duro, 1.051" ID x .070" Thk

1шт.

24

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Plug -022, 90 Duro, .989" ID x .070" Thk

1шт.

25

D87303

BACK-UP RING

- backup, small O-ring

2шт.
