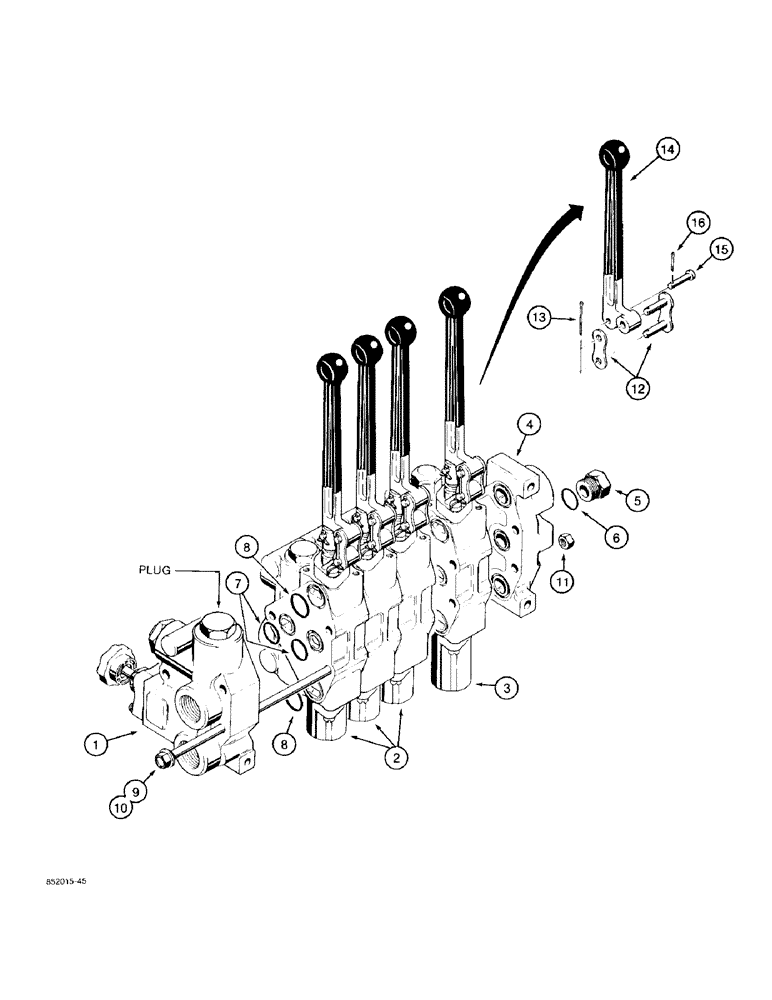

Запчасти Case 480F LL (8-104) - THREE-POINT HITCH CONTROL VALVES, FOUR AND FIVE SPOOL VALVE ASSEMBLIES (08) - HYDRAULICS

101841A1

VALVE

ASSEMBLY - hitch control, four-spool, 480F only, Ref. 1 has a plugged main relief port, was D122164, if used, Includes: Ref. 1 - 16

1шт.

101842A1

VALVE

ASSEMBLY - hitch control, five-spool, 480F LL only, Ref.1 has a plugged main relief port, was D122165, if used, Includes: Ref. 1 - 16

1шт.

1

D122551

VALVE

SECTION ASSEMBLY - inlet-outlet, parts list Figure 8-108

1шт.

2

N8691

KNIFE SECTION

SECTION ASSEMBLY - implement, pitch, and tilt, section does not include control lever and mounting, see Ref. 12-16 below, parts list Figure 8-112

3-4шт.

3

N8692

KNIFE SECTION

SECTION ASSEMBLY - lift, section does not include control lever and mounting, see Ref. 12-16 below, parts list Figure 8-110

1шт.

D122553

PLATE

SECTION ASSEMBLY - end, cover plate, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube Hex Hd, 1 1/16"-12 ORB

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

7

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk, If used, see S302092 below

10-12шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

If used, see S302092 below -117, 90 Duro, .799" ID x .103" Thk

5-6шт.

8

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk, If used, see S302092 below

10-12шт.

8

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

If used, see S302092 below -119, 70 Duro, .924" ID x .103" Thk

15-18шт.

9

D86578

BOLT

- tie, 3/8 NF x 9-1/2 inch, four-spool valve only

3шт.

10

N7117

BOLT

- tie, 3/8 NF x 11-1/4 inch, five-spool valve only

3шт.

11

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

12

H620344

LINK

ASSEMBLY - lever

4-5шт.

13

132-17

COTTER PIN,1/16" x 2"

PIN - cotter, 1/16 x 1-1/2 inch, plated

4-5шт.

14

N7113

HANDLE

LEVER - control, section

4-5шт.

15

D88727

PIN

- control lever to spool eye

4-5шт.

16

432-58

COTTER PIN,5/64" x 1/2"

5/64" x 1/2"

4-5шт.

S302092

SEAL KIT

KIT - seal, between section, includes seals for one section, both 1/16 and 3/32 inch wide, see Ref. 7 and 8

1шт.
