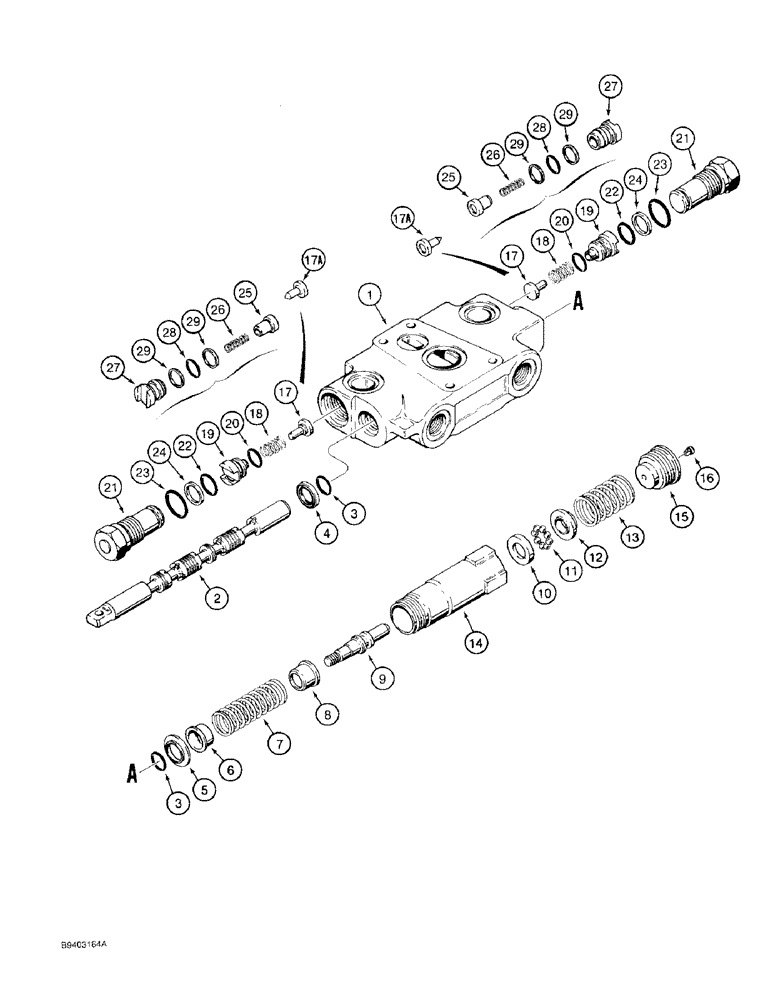

Запчасти Case 480F LL (8-080) - LOADER CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS

G106336

VALVE, CHECK

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool and housing, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool, replaces A32309 seal

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring, upper, small

1шт.

7

G106455

SPRING

- centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT - centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

- detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

- detent, ball retainer

1шт.

11

211-258

BALL

- steel, 9/32 inch diameter

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

- ball stop

1шт.

13

G109081

SPRING

- detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

- detent

1шт.

15

G109384

PLUG,3/8" - 18

- detent housing

1шт.

16

G107780

VALVE, CHECK

VALVE - check, detent plug

1шт.

17

G33081

VALVE POPPET

POPPET - flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

17a

1343788C1

VALVE POPPET

POPPET - pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

18

G33573

SPRING

- load check, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

19

G33084

PLUG

- load check, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

20

G33686

O-RING,0.07" Thk x 0.61" ID

- plug, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G33122

PLUG,ORB

ASSEMBLY - load check valve port, Includes: Ref. 21 - 24

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG - load check valve port

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

24

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 25 - 29

2шт.

25

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat and pointed poppets

1шт.

26

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check valve

1шт.

27

1343708C1

PLUG

- load check valve

1шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

29

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 20, 22 - 24, 28 and 29, plus additional O-rings not required for this application

1шт.
