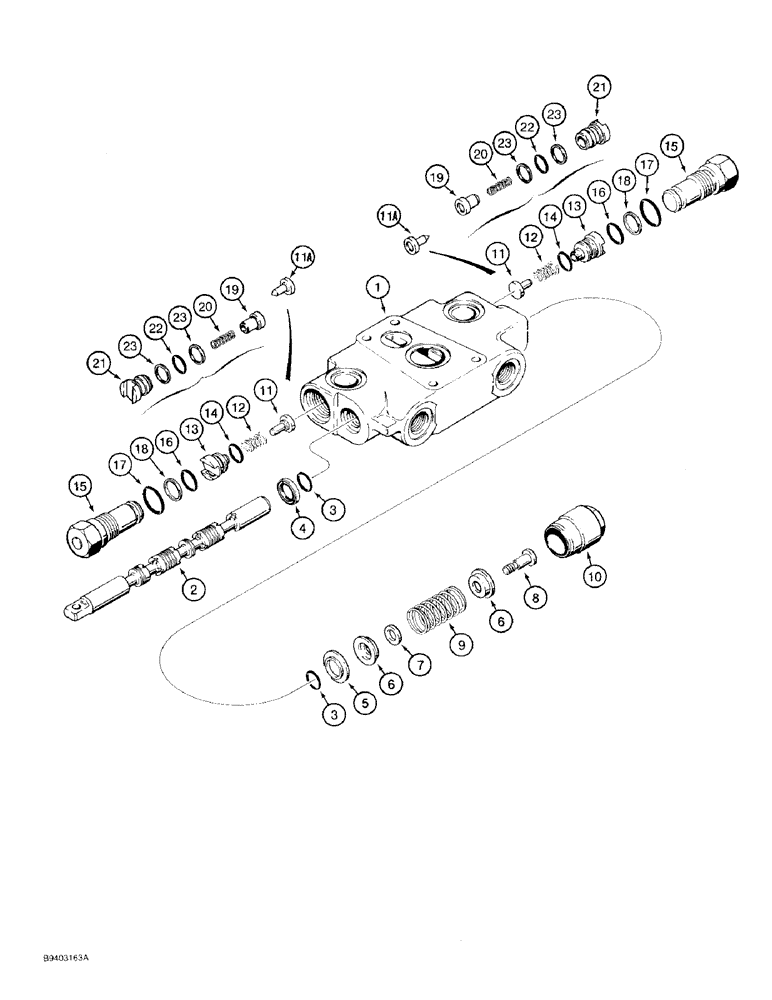

Запчасти Case 480F LL (8-078) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS

G106404

VALVE

SECTION ASSEMBLY - clam, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool and housing, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool, replaces A32309 seal

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- split

1шт.

8

G106409

SEAT

SCREW - spool end

1шт.

9

G34463

SPRING

- centering, spool

1шт.

10

G33080

CAP

- spool end

1шт.

11

G33081

VALVE POPPET

POPPET - flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

11a

1343788C1

VALVE POPPET

POPPET - pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 19 - 23

2шт.

12

G33573

SPRING

- load check, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

13

G33084

PLUG

- load check, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug, no longer used, order 1345219C2 valve, Ref. 19 - 23

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G33122

PLUG,ORB

ASSEMBLY - load check valve port, Includes: Ref. 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG - load check valve port

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 19 - 23

2шт.

19

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat and pointed poppets

1шт.

20

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check valve

1шт.

21

1343708C1

PLUG

- load check valve

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

23

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 14, 16 - 18, 22 and 23, plus additional O-rings not required for this application

1шт.
