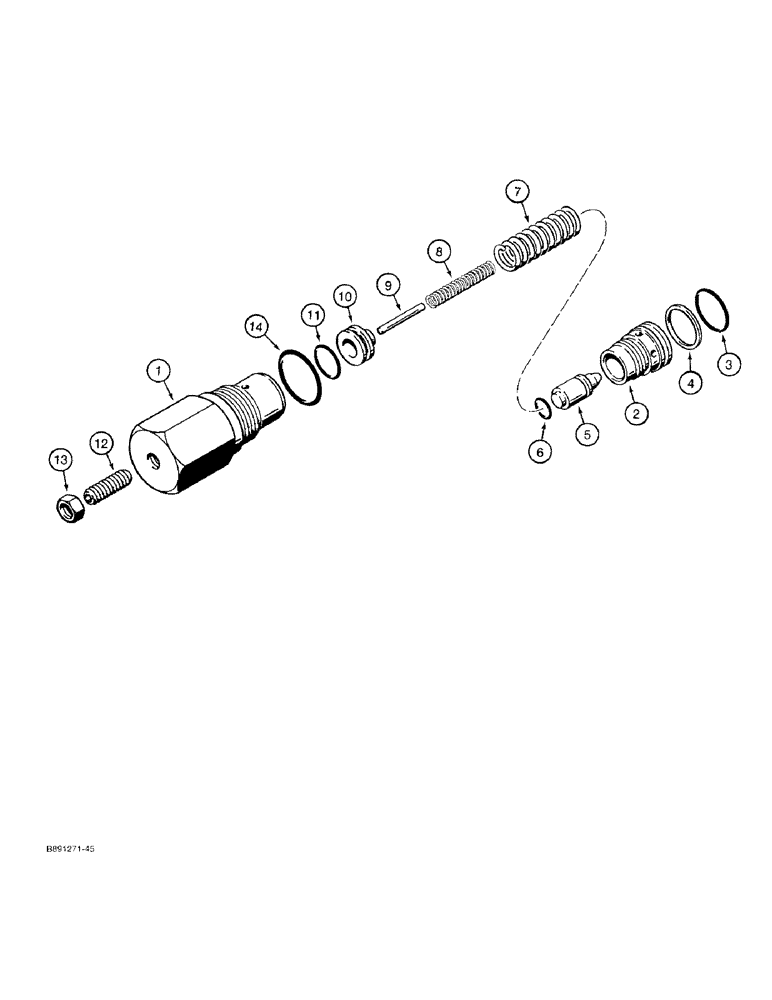

Запчасти Case 480F LL (8-076) - LOADER CONTROL VALVE, CIRCUIT RELIEF VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G107786
VALVE, PRESSURE RELI
VALVE ASSEMBLY - circuit relief, bucket section, high pressure, used in production only, order G109449 circuit relief valve kit below, Includes: Ref. 1 - 14
2шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - circuit relief valve
1шт.
2
NSS
NOT SOLD SEPARAT
SEAT - circuit relief valve
1шт.
3
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
Part of seal kit P/N 1346105C1.
1шт.
4
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup, seat O-ring
1шт.
Part of seal kit P/N 1346105C1.
1шт.
5
NSS
NOT SOLD SEPARAT
POPPET - circuit relief valve
1шт.
6
NSS
NOT SOLD SEPARAT
O-RING - poppet
1шт.
7
NSS
NOT SOLD SEPARAT
SPRING - relief, outer
1шт.
8
NSS
NOT SOLD SEPARAT
SPRING - relief, inner
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - relief stop, no longer used, not required
1шт.
10
NSS
NOT SOLD SEPARAT
PISTON - circuit relief valve
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
12
484-43116
SET SCREW,Hex Soc, 5/16"-24 x 1"
SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval pt
1шт.
13
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
Part of seal kit P/N 1346105C1.
1шт.
1346105C1
SEAL KIT
KIT - seal, Includes: Ref. 3, 4 and 14 and parts on Figure 8-074, plus additional O-rings not required for this applicaton
1шт.
KIT
- circuit relief valve, service for G107786, includes G109447 relief valve assembly (Ref. 1 - 14) and an instruction sheet
1шт.
The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.
1шт.
Выбрано товаров: 22
