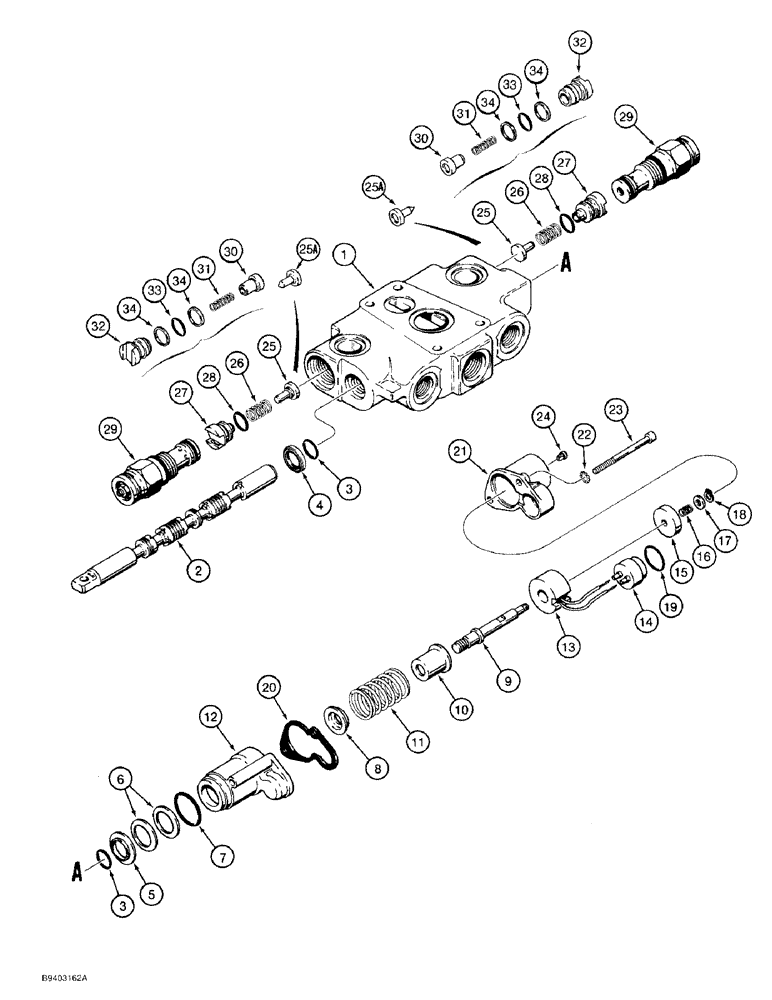

Запчасти Case 480F LL (8-074) - LOADER CONTROL VALVE, BUCKET SECTION (08) - HYDRAULICS

G110552

VALVE

SECTION ASSEMBLY - bucket, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool and housing, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool, replaces A32309 seal

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G106452

SPRING WASHER

SPRING - Belleville, washer

2шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

8

G106442

SEAT

RETAINER - centering spring

1шт.

9

G107445

SHAFT

- magnetic detent

1шт.

10

G106441

SEAT

- centering spring

1шт.

11

G109302

SPRING

- centering, spool

1шт.

12

G106423

HOUSING

- magnetic detent

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY - magnetic detent, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COIL - magnetic detent

1шт.

14

G106450

COIL

CONNECTOR - coil

1шт.

15

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

- detent

1шт.

16

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

- detent washer

1шт.

17

A50778

WASHER

- shaft

1шт.

18

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer (Replaces A7111) #25, Ext

1шт.

19

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

20

G106443

GASKET

- connector

1шт.

21

G106424

CAP

- magnetic detent

1шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT - hex socket, No. 10 NC x 2-3/4 inch

2шт.

24

G107780

VALVE, CHECK

VALVE - check, magnetic detent

1шт.

25

G33081

VALVE POPPET

POPPET - flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 30 -34

2шт.

25a

1343788C1

VALVE POPPET

POPPET - pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 30 - 34

2шт.

26

G33573

SPRING

- load check, no longer used, order 1345219C2 valve, Ref. 30 - 34

2шт.

27

G33084

PLUG

- load check, no longer used, order 1345219C2 valve, Ref. 30 - 34

2шт.

28

G33686

O-RING,0.07" Thk x 0.61" ID

- plug, no longer used, order 1345219C2 valve, Ref. 30 - 34

2шт.

Part of seal kit P/N 1346105C1.

1шт.

29

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, parts list Figure 8-076 used in production only, order G109449 circuit relief valve kit

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 30 - 34

2шт.

30

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat and pointed poppets

1шт.

31

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check valve

1шт.

32

1343708C1

PLUG

- load check valve

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

34

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 7, 19, 28, 33 and 34 on this figure and parts on Figure 8-076, plus additional O-rings not required for this application

1шт.
