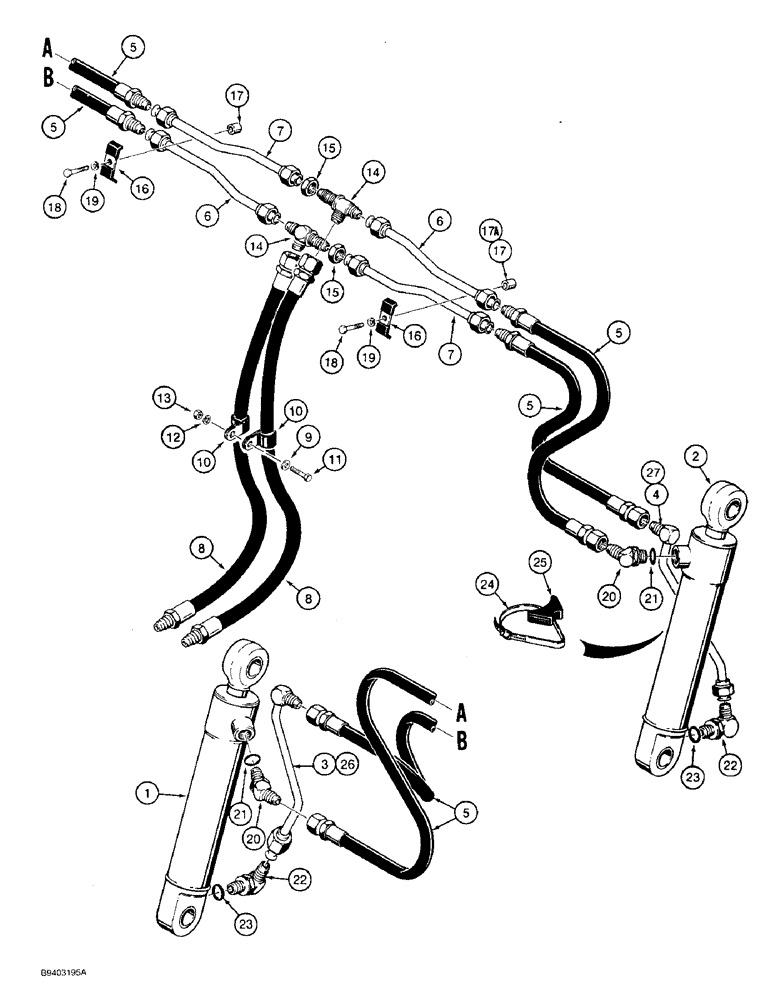

Запчасти Case 480F LL (8-016) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - clam, left-hand, see Figure 8-126 and 8-127A

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - clam, right-hand, see Figure 8-126 and 8-127A

1шт.

3

D51619

TUBE

- left-hand cylinder, used with G101191 cylinder only

1шт.

4

D51621

TUBE

- right-hand cylinder, used with G101190 cylinder only

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 26 inch (660 mm) long, right-hand and left-hand cylinders

4шт.

6

D67081

TUBE

- horizontal, right-hand upper and left-hand lower, short

2шт.

7

D67083

TUBE

- horizontal, right-hand lower and left-hand upper, long

2шт.

8

D146727

HOSE ASSY.

HOSE - 1000 mm long, from loader lift frame, if used

1-2шт.

8

D150688

HOSE ASSY.

HOSE - 850 mm long, from loader lift frame, if used

1шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- vertical tubes

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- 7/8-14 inch flare branch x flare x bulkhead flare, connecting horizontal and vertical tubing

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

- horizontal tubing

2шт.

17

D33552

BUSHING

SPACER - tube clamps, no longer used, order item 17A D146035 spacer

2шт.

17a

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube clamps

2шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, clam cylinder, rod end, Incl. Ref 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, clam cylinders, closed end, Incl. Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Clam cylinder tubing #64, 3.56/4.50 Type F Worm

2шт.

25

D38648

BLOCK

INSULATOR - rubber, clamp

2шт.

26

D148192

PIPE

TUBE - left-hand cylinder, used with 1346190C1 cylinder only

1шт.

27

D148190

TUBE

- right-hand cylinder, used with 1346189C1 cylinder only

1шт.
