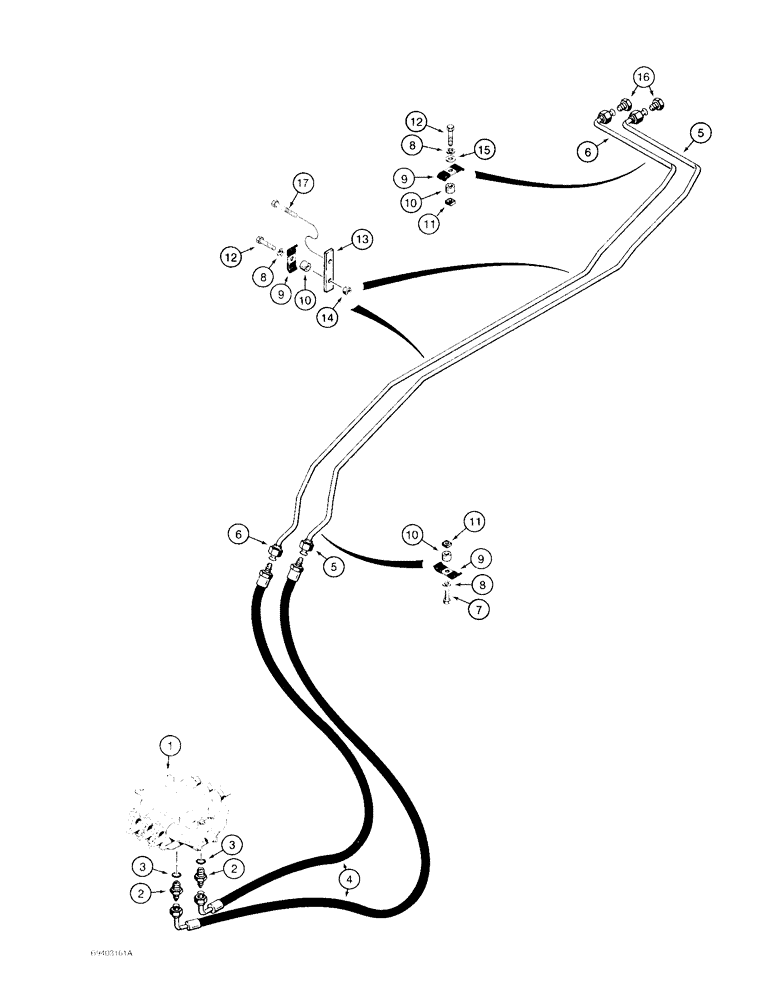

Запчасти Case 480F LL (8-014) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1343681C1

VALVE

ASSEMBLY - loader control, 3 spool, parts list Figure 8-072

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D138237

HOSE ASSY.

HOSE - 1000 mm long, to clam cylinder at valve, replaces D142583

2шт.

5

D146321

TUBE ASSY.

TUBE - to rod end of clam cylinder

1шт.

6

D146319

TUBE ASSY.

TUBE - to closed end of clam cylinder

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

D138055

CLAMP

- metal, tube

4шт.

10

D76208

SPACER

- tube clamp

4шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

13

D146358

BRACKET

- tube clamp mounting

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

218-775

PLUG,3/4"-16, 37 Degree

- hex, 3/4-16 flare, Hydraulic tubing, if used

2шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.
