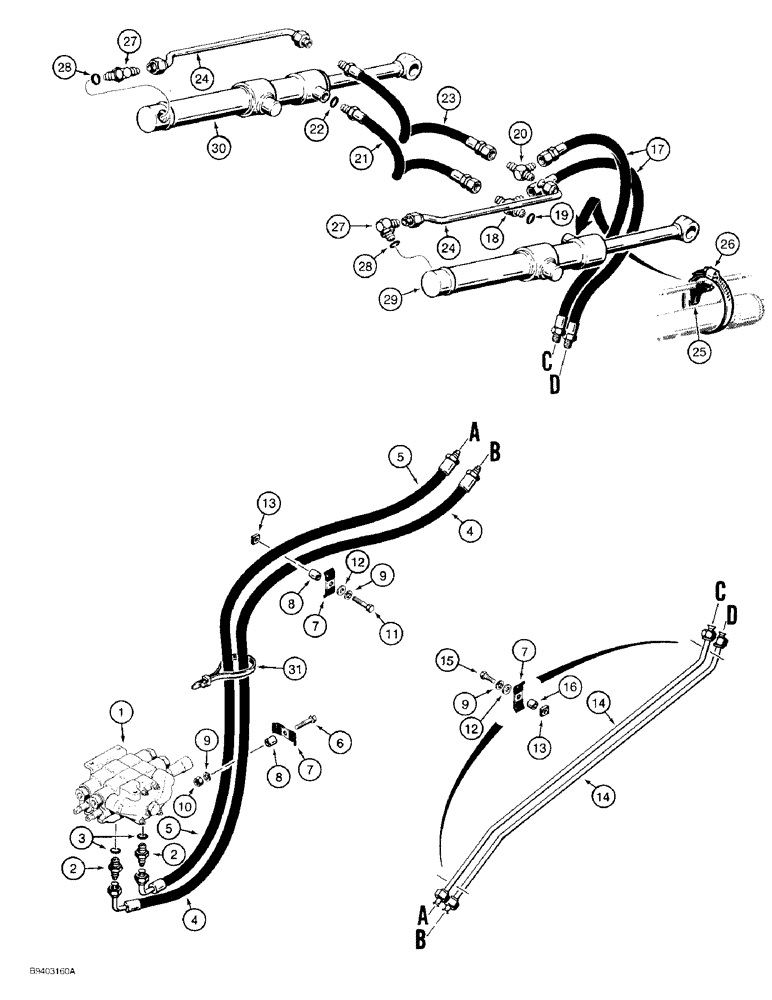

Запчасти Case 480F LL (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figures 8-070 and 8-072

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D146675

HOSE ASSY.

HOSE - 1475 mm long, dump cylinder hose, to rod end of bucket cylinder

1шт.

5

D146401

HOSE ASSY.

HOSE - 1350 mm long, dump cylinder hose, to closed end of bucket cylinder

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

7

D138055

CLAMP

- metal, tube or hose

3-4шт.

8

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp, replaces D76212

1-2шт.

9

492-11038

LOCK WASHER,3/8"

3-4шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2-3шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2-3шт.

14

D146317

TUBE

- to bucket cylinders, on loader arm

2шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

16

D76208

SPACER

- clamp

2шт.

17

D142585

HOSE ASSY.

HOSE - 775 mm long, to bucket cylinders

2шт.

18

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

- 7/8-14 flare branch x flare x 3/4-16 inch flare

1шт.

21

D145107

HOSE ASSY.

HOSE - 825 mm long, to rod end of left-hand bucket cylinder, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

D145106

HOSE ASSY.

HOSE - 750 mm long, to closed end of left-hand bucket cylinder

1шт.

24

D73800

HYD TUBE,0.5" OD x 22.5, 2" L

TUBE - to closed end of bucket cylinders

2шт.

25

D38648

BLOCK

SPACER - rubber

2шт.

26

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

2шт.

27

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

G101186

CYLINDER

ASSEMBLY - bucket, right-hand, parts list Figure 8-124

1шт.

30

G101187

CYLINDER

ASSEMBLY - bucket, left-hand, parts list Figure 8-124

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
