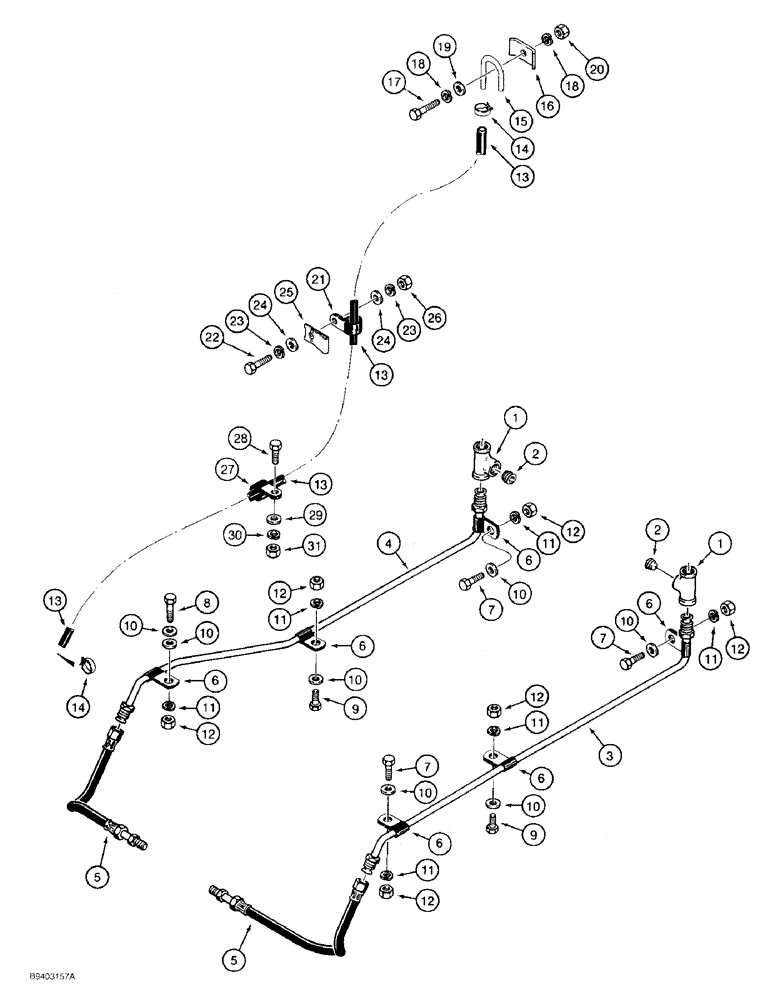

Запчасти Case 480F LL (7-12) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, MASTER CYLINDERS TO TRANSAXLE BRAKE CYLINDERS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
222-1165
TEE,7/16"-24, Inv Fl
- brake lines
2шт.
2
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
- hex socket, 1/8 inch PT
2шт.
3
D86002
TUBE,6.35 mm OD x 636, 126 mm L
- to right-hand brake
1шт.
4
D99795
TUBE,6.35 mm OD x 635, 126 mm L
- to left-hand brake
1шт.
5
D66741
HOSE,6.35mm ID x 270mm L
- brake
2шт.
6
49851
SHIELD
- retaining
6шт.
7
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
3шт.
8
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch, LH side
1шт.
9
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
10
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
7шт.
11
492-11038
LOCK WASHER,3/8"
6шт.
12
425-106
NUT,3/8"-16, Cl 5
6шт.
13
D134642
HOSE
- 48-7/16 inch (1230 mm) long, vent, order A21561X and, Serial Range: cut-length
1шт.
14
F64936
CLAMP
- hose
2шт.
15
D133917
TUBE
- vent
1шт.
16
L15301
CLAMP
- vent tube, at brake pedal mounting bracket
1шт.
17
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
1шт.
18
492-11038
LOCK WASHER,3/8"
2шт.
19
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
1шт.
20
425-106
NUT,3/8"-16, Cl 5
1шт.
21
49838
CLAMP
- retaining
1шт.
22
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
1шт.
23
492-11038
LOCK WASHER,3/8"
2шт.
24
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
2шт.
25
D122307
NUT
NUT - U-type, 3/8 inch NC
1шт.
26
425-106
NUT,3/8"-16, Cl 5
1шт.
27
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
- P-type, 3/4 inch ID
1шт.
28
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
29
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
1шт.
30
492-11038
LOCK WASHER,3/8"
1шт.
31
425-106
NUT,3/8"-16, Cl 5
1шт.
Выбрано товаров: 31
