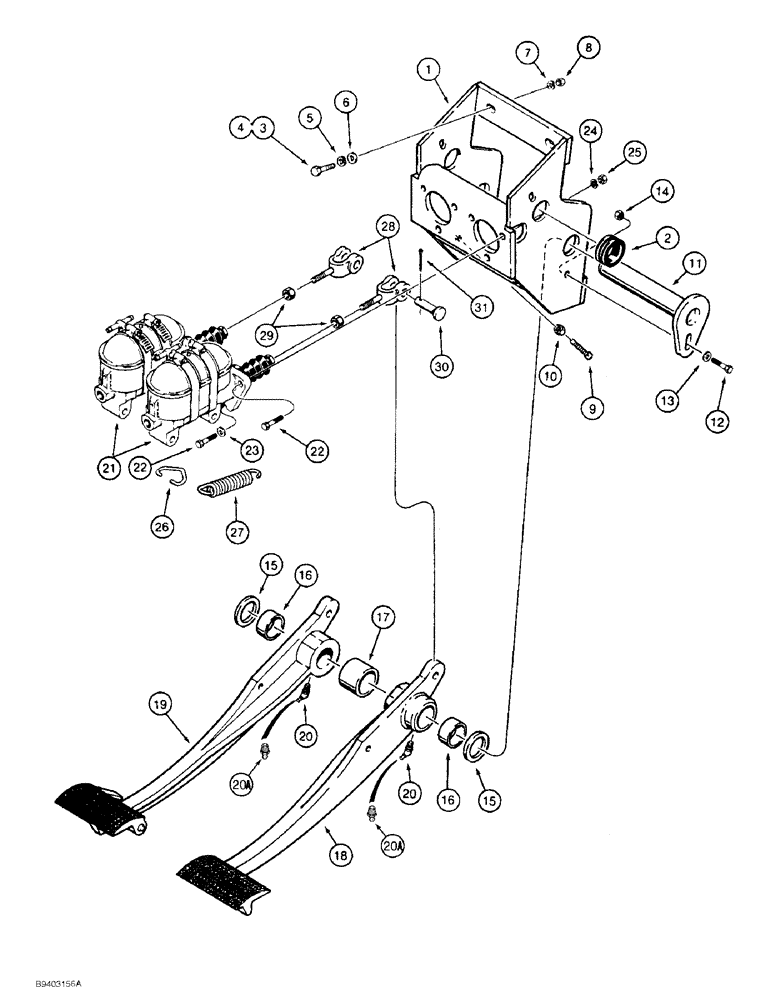

Запчасти Case 480F LL (7-10) - BRAKE PEDALS AND MOUNTING (07) - BRAKES

1

D127611

BRACKET

- brake pedal and master cylinder mounting

1шт.

2

D67915

GROMMET

- rubber

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, transaxle vent hose mounting, left-hand side only

1шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

7

492-11038

LOCK WASHER,3/8"

upper left-hand mounting hole only, for transaxle vent hose mounting 3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

Upper LH mounting hole only, for transaxle vent hose mounting 3/8"-16, G5

1шт.

9

85-13828

SET SCREW,Sq Hd, 3/8"-16 x 1 3/4"

SCREW - set, square head, 3/8 NC x 1-3/4 inch, cup point

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

D84355

SHAFT

- pedal

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

- flat, 1-5/16 x 2 x 1/8 inch

1шт.

16

D89845

SPACER

- pedal, outer

2шт.

17

D94176

SPACER

- pedal, center

1шт.

18

D90654

PEDAL

- brake, right-hand

1шт.

19

D90751

PEDAL

- brake, left-hand

1шт.

20

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 30 degree, 1/8 PT x 29/32 inch, if used

2шт.

20a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

21

D127519

CYLINDER,36.58mm Stroke

ASSEMBLY - brake master, parts list Figure 7-16, see Figure 7-14 for the cover, gasket, and clamps

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

425-106

NUT,3/8"-16, Cl 5

6шт.

26

D120218

ANCHOR

- brake spring

2шт.

27

D120911

SPRING

- pedal return

2шт.

28

D94105

YOKE

CLEVIS - master cylinder

2шт.

29

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

30

427-7119

CLEVIS PIN,11.13mm OD x 30.23mm L

PIN - clevis, 7/16 x 1-3/16 inch

2шт.

31

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.
