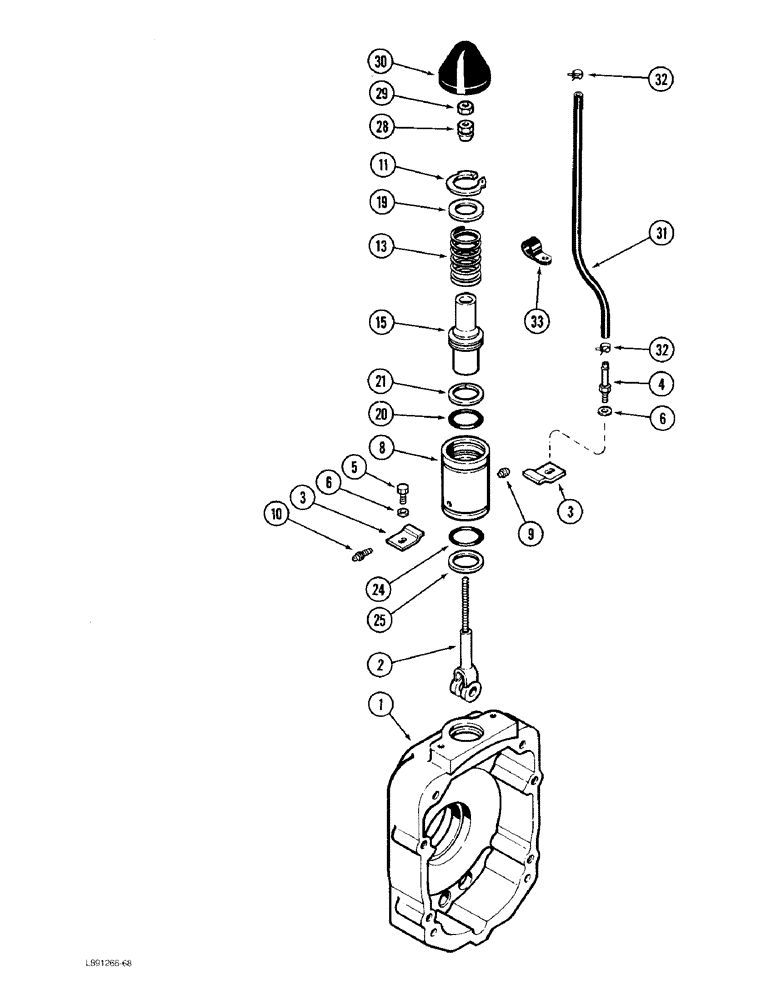

Запчасти Case 480F LL (7-04) - TRANSAXLE, DIFFERENTIAL BRAKE ACTUATOR (07) - BRAKES

1

REF

INSTRUCTION

HOUSING ASSEMBLY - brake (See Figure 7-02)

2шт.

2

A168817

STEM

ROD - pull, brake actuating

2шт.

3

A168909

LARGE PLATE

PLATE - clamp, actuator

4шт.

4

A182270

FITTING

- breather bolt

3шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

A168974

ACTUATOR

ASSEMBLY - brake, Includes: Ref. 8 - 25

2шт.

A168974R

REMAN-BRAKE ASSY.

480F LL, 480F (9/89-)

2шт.

A168974C

CORE

Return Number

1шт.

8

A52266

HOUSING

- piston

1шт.

9

S120617

INSERT

- seat

1шт.

10

S114300

BLEEDER,3/8" - 24 x 1.17"

SCREW - bleed

1шт.

11

A52276

RETAINER

RING - retainer

1шт.

13

A52272

SPRING

- piston

1шт.

15

A52267

PISTON

- actuator

1шт.

A52277

PACKAGE

REPAIR KIT - piston, Includes: Ref. 19 - 25

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - flat, 2 inch OD

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, 1-1/2 inch ID

1шт.

21

A52271

SEALING RING

RING - backup, piston

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - housing, 1-5/8 inch OD

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

28

A157951

NUT

- hex, pull rod

2шт.

29

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

30

A179594

BOOT

SEAL - dust

2шт.

31

D134065

HOSE

- breather, 1/4 ID x 21-5/8 inch (Order D134170 and, Serial Range: cut-length)

1шт.

32

F64936

CLAMP

- hose

2шт.

33

49838

CLAMP

- mounting, tube

1шт.
