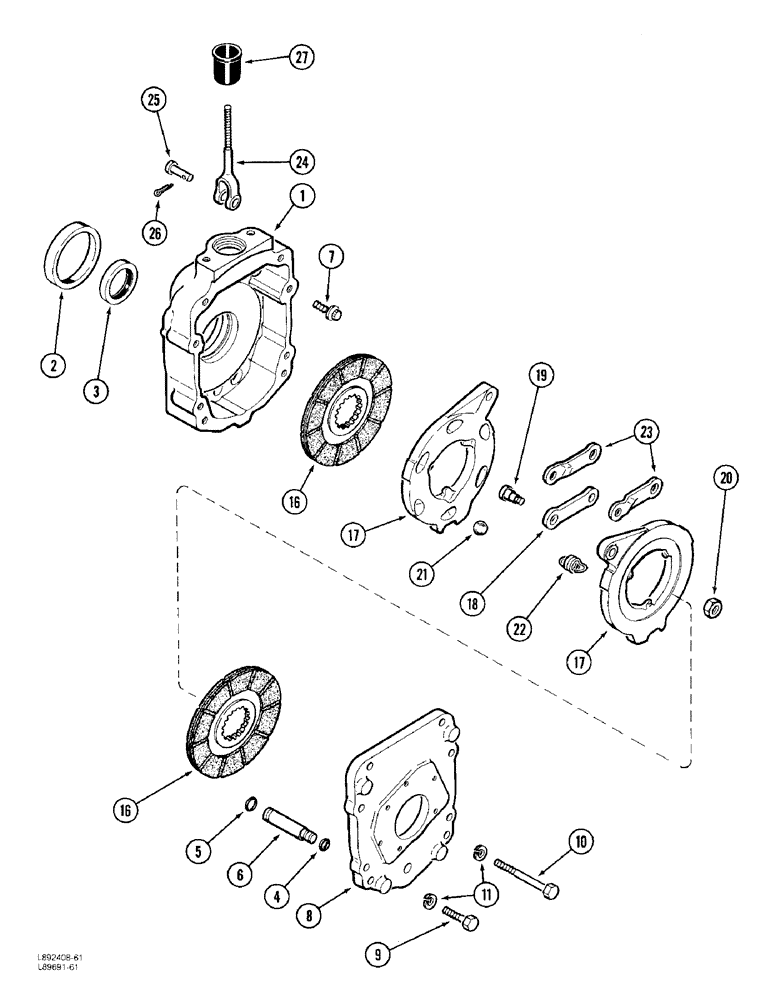

Запчасти Case 480F LL (7-02) - TRANSAXLE, DIFFERENTIAL BRAKE HOUSING AND BRAKE (07) - BRAKES

1

A179102

HOUSING

ASSEMBLY - brake, Includes: Ref. 2

2шт.

2

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - bearing, 4-7/16 inch OD, replaces A7890

1шт.

3

A179054

OIL SEAL,63.54mm ID x 88.82mm OD x 12mm Thk

SEAL - oil

2шт.

4

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

2шт.

5

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

6

A182439

AXLE PIN

PIN - spring anchor

2шт.

7

A156878

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 1-1/4 inch

4шт.

8

A168821

COVER

- brake housing, right (Shown)

1шт.

8

A168822

COVER

- brake housing, left

1шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

1349144C1

BRAKE

ASSEMBLY - disc, Includes: Ref. 16 - 23

2шт.

16

1349141C2

DISC

ASSEMBLY - brake, rotating

2шт.

A48949

DISC

ASSEMBLY - brake, actuating, Includes: Ref. 17 - 23

1шт.

17

A41860

DISC

- brake, actuating

2шт.

18

1276923C2

LINK

- actuating, disc

1шт.

19

A41865

BOLT

BOLT - actuating, disc

2шт.

20

A42801

JAM NUT

- hex jam, 1/2 inch NF

2шт.

21

211-223

BALL,1" Dia

- actuating, 1 inch diameter

5шт.

22

A47719

SPRING

- disc tension

3шт.

23

A48952

LINK

- actuating, disc

2шт.

24

REF

INSTRUCTION

ROD - pull, brake actuating (See Figure 7-04)

2шт.

25

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN - clevis rod to brake links

2шт.

26

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

27

A179595

BOOT

SEAL - dust, brake housing

2шт.
