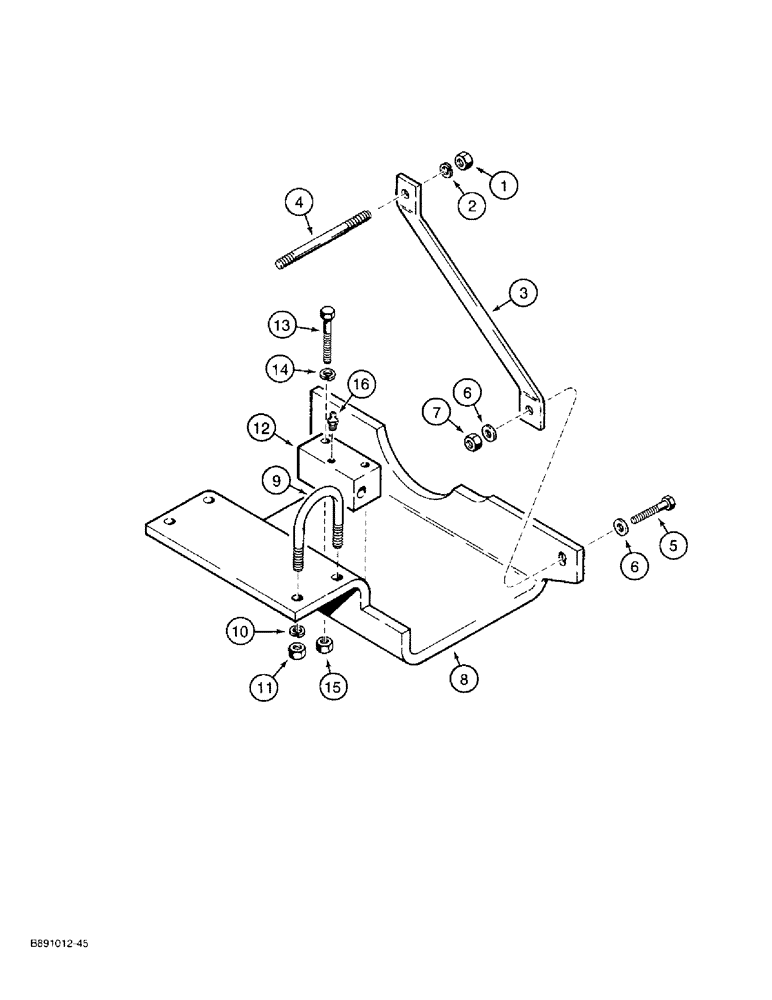

Запчасти Case 480F LL (6-68) - TRANSAXLE TRANSFER GEARBOX GUARD (06) - POWER TRAIN

1

425-1010

NUT,5/8"-11, G5

2шт.

2

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

2шт.

D102985

GUARD

KIT - guard, four wheel drive transfer gearbox control linkage, includes installation instructions, order components Ref. 3 - 16

1шт.

3

D139940

STRAP

SUPPORT - guard

2шт.

4

A168517

STUD

- transmission case to PTO housing

2шт.

5

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

6

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

4шт.

7

425-1010

NUT,5/8"-11, G5

2шт.

8

D139942

GUARD

- transfer gearbox

1шт.

9

D144395

U-BOLT

BOLT - U-type, 1/2 inch NC

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

12

D139941

PIVOT

BLOCK - pivot

1шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

15

S118998

NUT

- special, 3/8 inch NC

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.
