Запчасти Case 480F LL (6-62) - TRANSAXLE TRANSFER GEAR BOX, 4 WHEEL DRIVE (06) - POWER TRAIN

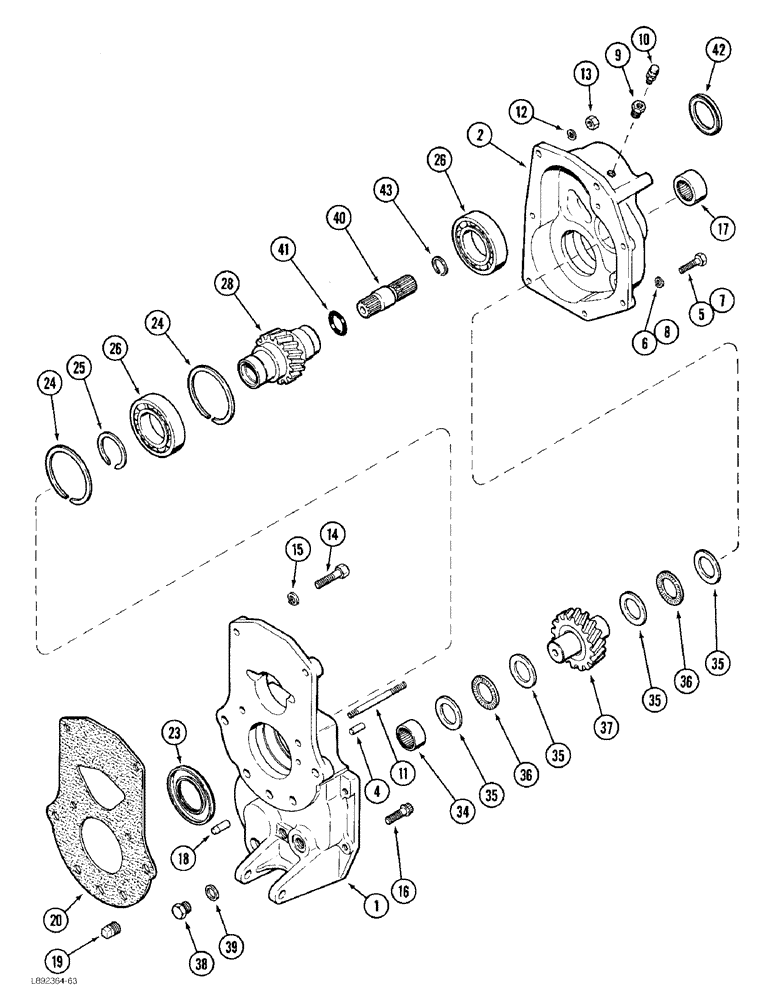

Схема запчастей Case 480F LL - (6-62) - TRANSAXLE TRANSFER GEAR BOX, 4 WHEEL DRIVE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A168942

HOUSING

ASSEMBLY - transfer gearbox (Matched set), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transfer gearbox (Order assembly)

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - transfer gearbox (Order assembly)

1шт.

4

A55459

PIN

- dowel, Serial Range: cover-housing

2шт.

5

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

3шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

2шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - hex reducing, 3/8 x 1/8 inch PT

1шт.

10

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

- transfer gearbox, replaces A12928

1шт.

11

A153248

STUD

- transfer gearbox mounting, 4-13/16 inch

2шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 12 point head, 1/2 NC x 1-1/2 inch

2шт.

17

A156286

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 25.4mm W

BEARING - idler gear, front

1шт.

18

A29540

PIN

- dowel, transmission housing

1шт.

19

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2 inch PT

1шт.

20

1342800C1

GASKET

- transmission housing to transfer gearbox, replaces A182720

1шт.

23

A157228

OIL SEAL

- input gear oil

1шт.

24

A31234

RING

- bearing to gearbox retaining

2шт.

25

CASA27117

RING, SNAP

RING - retaining, 0.096 inch

1шт.

25

A27118

RING, SNAP

RING - retaining, 0.0975 inch

1шт.

25

A27119

RING, SNAP

RING - retaining, 0.099 inch

1шт.

25

A27116

SNAP RING

RING - retaining, 0.109 inch

1шт.

26

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING - input gear

2шт.

28

A179007

PINION

GEAR - input, 14 tooth

1шт.

34

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING - idler gear rear

1шт.

35

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

- idler gear thrust

4шт.

36

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - idler gear thrust

2шт.

37

A156256

GEAR

- idler, 17 tooth

1шт.

38

A140222

PLUG

- transfer gearbox drain

1шт.

39

A58608

GASKET

- drain plug

1шт.

40

A179006

SHAFT

SPLINE - stub

1шт.

41

238-9217

O-RING,-217, Cl 9, 1.171" ID x .139" Thk

- 1-3/16 ID x 1/8 inch wide

1шт.

42

A179071

OIL SEAL

- oil

1шт.

43

101-11106

SNAP RING,#106, 1.000", Ext

RING - snap

1шт.

Выбрано товаров: 38
