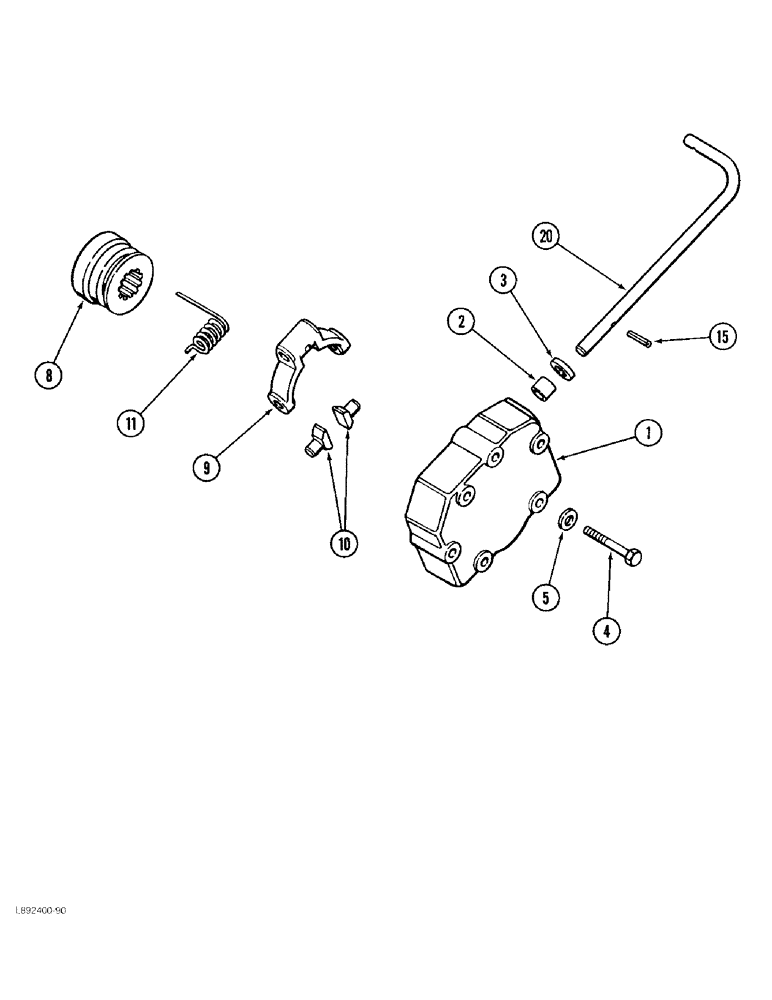

Запчасти Case 480F LL (6-58) - TRANSAXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A168525

COVER ASSY

COVER ASSEMBLY - lock (On right brake housing), Includes: Ref. 2 and 3

1шт.

2

L14229

BEARING

BUSHING - cover, replaces B15768

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil

1шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

6шт.

8

A156373

COLLAR

- differential lock

1шт.

9

A168524

LEVER

- collar throw-out

1шт.

10

A65101

FINGER

S - lever to collar, replaces A38750

2шт.

11

A156559

SPRING

- throw-out lever

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20

A157734

SHAFT

- actuating

1шт.
