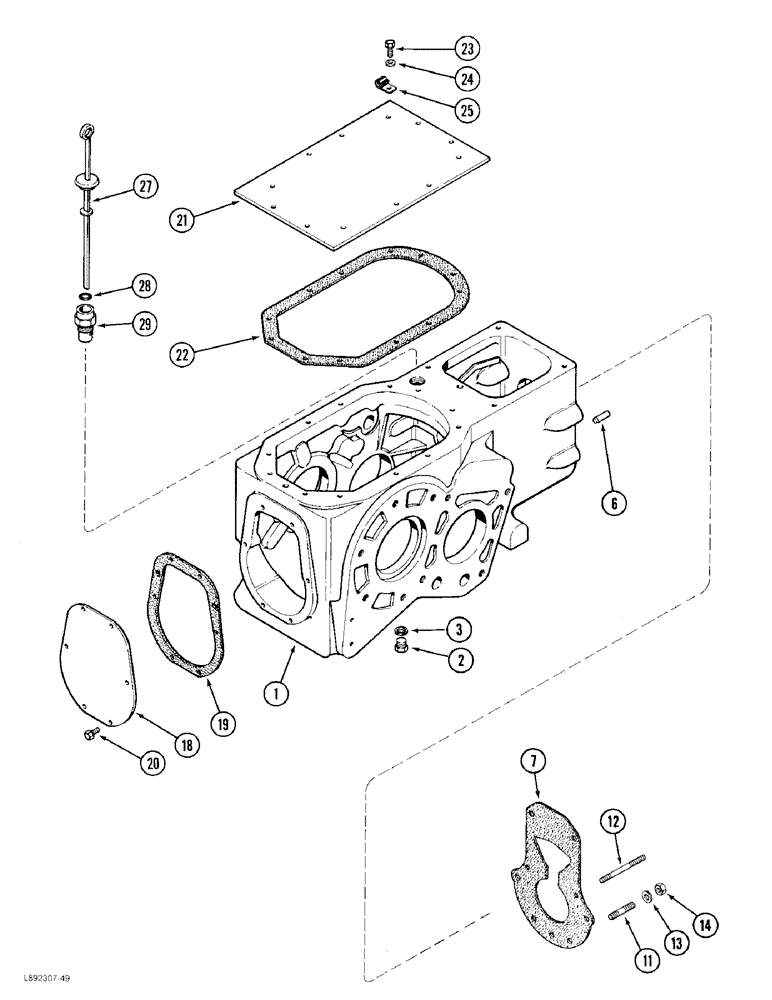

Запчасти Case 480F LL (6-48) - TRANSAXLE TRANSMISSION HOUSING, 4 WHEEL DRIVE (06) - POWER TRAIN

1

A182760

HOUSING

- transmission

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A29540

PIN

- dowel, locating

1шт.

7

1342800C1

GASKET

- front conver to transmission housing

1шт.

11

A168517

STUD

- front mount, 5/8 NC x 2-27/32 inch

2шт.

12

A153248

STUD

- cover, center, 4-13/16 inch

2шт.

13

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

1342375C1

GASKET

- rear cover to transmission housing

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket before assembly.

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

21

A153744

COVER

- housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

- top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, Grade 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, hardened

11шт.

25

49838

CLAMP

- retaining

1шт.

27

REF

INSTRUCTION

DIPSTICK ASSEMBLY - oil gauge (See Figure 6-42), Includes: Ref. 28

1шт.

28

REF

INSTRUCTION

O-RING - dipstick (See Figure 6-42)

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
