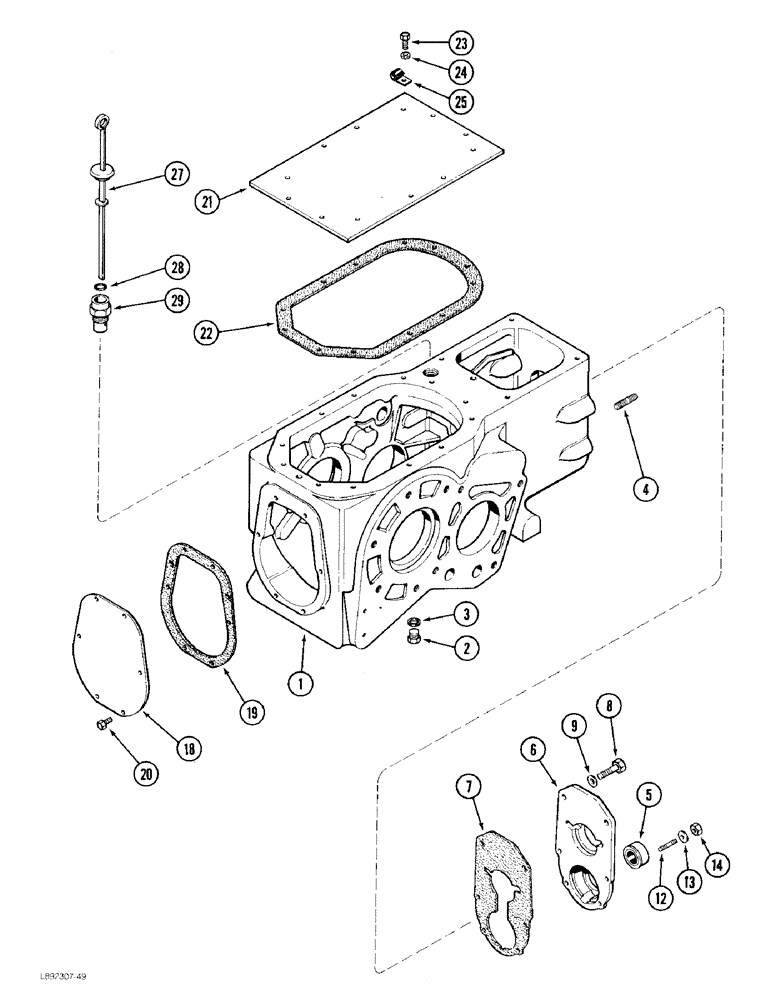

Запчасти Case 480F LL (6-46) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE (06) - POWER TRAIN

1

A182760

HOUSING

- transmission

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

4

A157625

STUD

- hardened, 5/8 NC x 2-1/2 inch

2шт.

5

A179056

OIL SEAL

- oil

1шт.

6

A168851

COVER

- front, transmission housing

1шт.

7

1342798C1

GASKET

- front cover to transmission housing

1шт.

8

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch

2шт.

9

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch

2шт.

12

A29717

STUD

- center, 1-1/2 inch

2шт.

12

G10710

STUD

- bottom, 1-3/4 inch

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

14

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

1342375C1

GASKET

- rear cover to transmission housing

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket before assembly.

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

21

A153744

COVER

- transmission housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

- top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, Grade 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, hardened

11шт.

25

49838

CLAMP

- retaining

1шт.

27

REF

INSTRUCTION

DIPSTICK - oil gauge (See Figure 6-42), Includes: Ref. 28

1шт.

28

REF

INSTRUCTION

O-RING - dipstick (See Figure 6-42)

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
