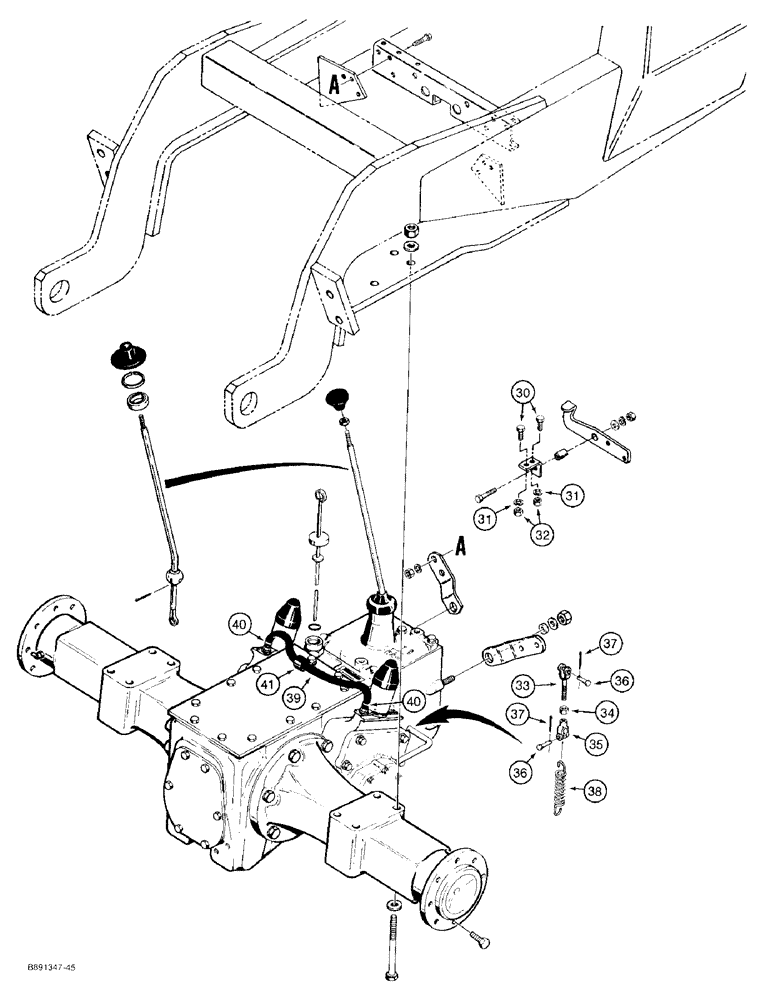

Запчасти Case 480F LL (6-44) - TRANSAXLE AND DIFFERENTIAL LOCK (CONTD) (06) - POWER TRAIN

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

D58332

ROD

- differential lock

1шт.

34

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

35

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

36

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

37

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

38

R29843

SPRING

- return

1шт.

39

D134065

HOSE

- 1/4 ID x 21-5/8 inch, vent, cut to required length from bulk hose D134170, see below

1шт.

40

F64936

CLAMP

- hose

2шт.

41

49838

CLAMP

- retaining

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 1/4 inch (6 mm) ID x 50 ft roll

1шт.
