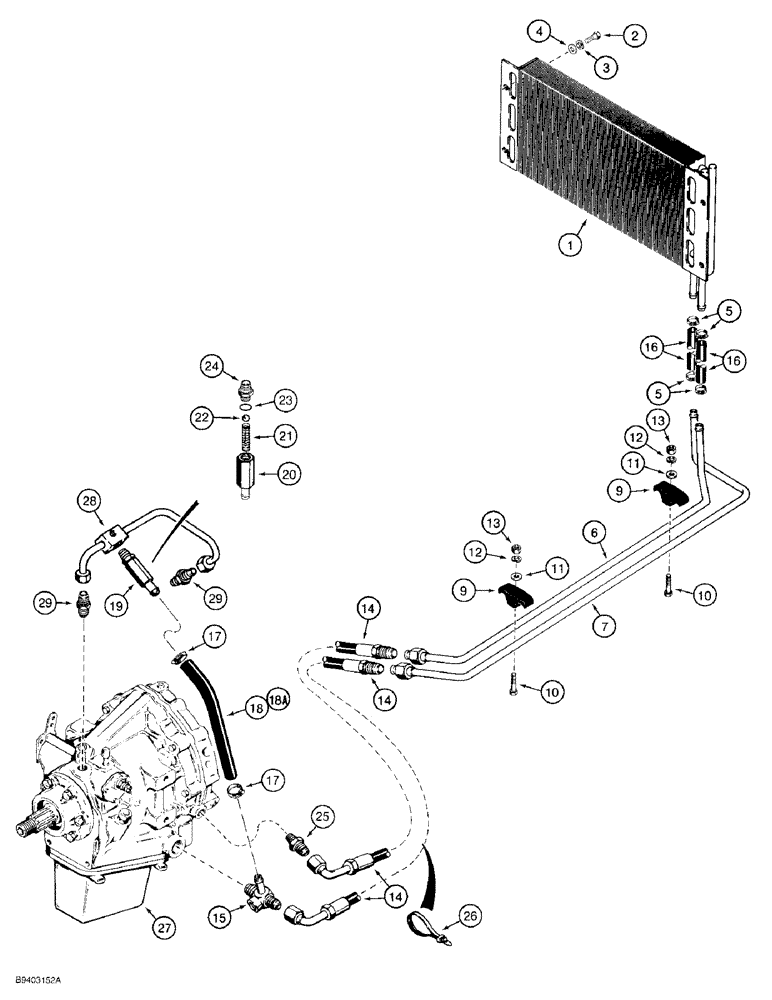

Запчасти Case 480F (6-06) - POWER SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A172814

COOLER, OIL

COOLER - oil, power shuttle

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8-1.25 x 16 mm

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

5

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

4шт.

6

D132105

TUBE

- cooler, inner

1шт.

7

D132103

TUBE ASSY.

TUBE - cooler, outer

1шт.

9

D120679

CLAMP,Tube, 1/2"

- tube, plastic

2шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

D69051

HOSE

- 18 inch (457 mm) long, power, Serial Range: shuttle-tubes

2шт.

15

D68972

CONNECTOR, ELEC

FITTING - four-way

1шт.

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Cut from S118388 Bulk Hose, Inlet 12.7 mm ID x 101.60 mm, SAE 100R3

2шт.

17

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

18

D136710

HOSE,12.5 mm ID x 250.00 mm, SAE 100R3

No Longer Used, for Service Order D150492 Hose, Item 18A 12.5 mm ID x 250.00 mm, SAE 100R3

1шт.

18a

D150492

HOSE

- 10-5/8 inch (270 mm) long

1шт.

19

D133321

VALVE POPPET

VALVE ASSEMBLY - relief, power shuttle, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

S73472

SPRING

- relief valve

1шт.

22

211-212

BALL

- 7/16 inch, grade 25, chrome alloy steel

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

24

S73469

SEAT, VALVE

SEAT - spring

1шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1-2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

REF

INSTRUCTION

SHUTTLE ASSEMBLY - power, parts list Figures 6-10 through 6-18

1шт.

D135703

PIPE ASSY.

TUBE ASSEMBLY - power shuttle, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE - power shuttle

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR - with sleeve and nut

2шт.

S118338

CLAMP

HOSE - bulk, 1/2 inch (13 mm) ID x 168 inch (4267 mm) long

1шт.
