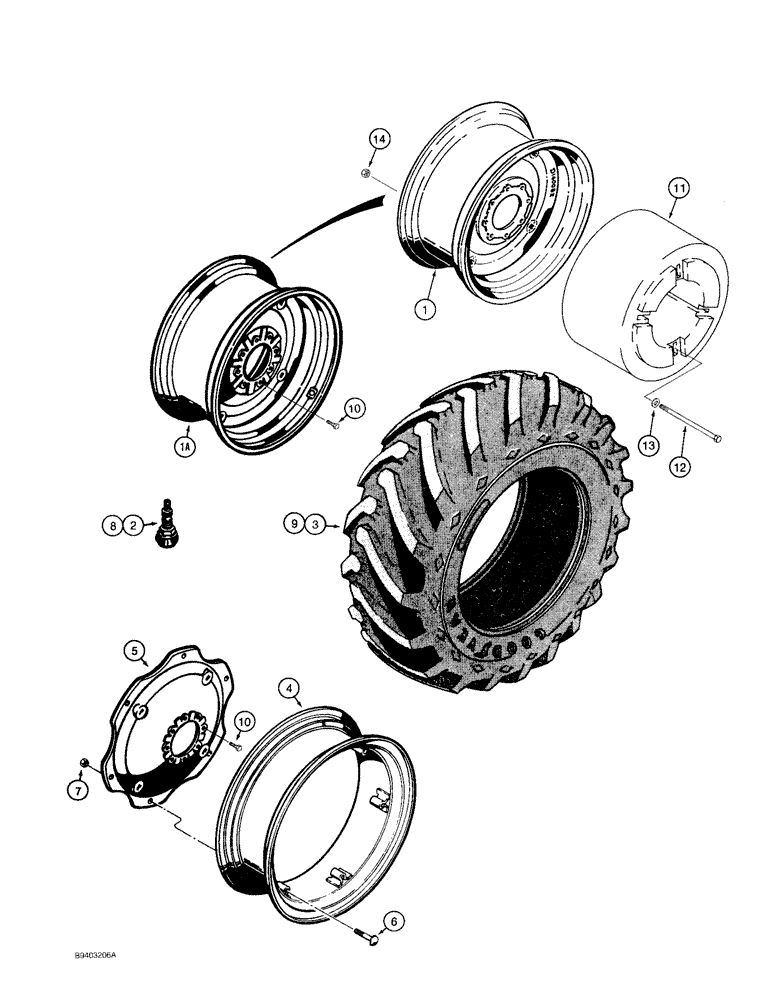

Запчасти Case 480F (6-02) - REAR WHEELS, WEIGHTS AND TIRES (06) - POWER TRAIN

1

D143975

WHEEL

- rim, part number stamped on wheel, 13.6 x 24 and 14.9 x 24 fixed disc

2шт.

2

A20058

VALVE STEM

Wheel, 13.6 x 24 and 14.9 x 24 fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, purchase locally, 13.6 x 24 and 14.9 x 24 fixed disc wheel

2шт.

1

D140062

WHEEL

- rim, part number stamped on wheel, 16.9 x 24 and 17.5L x 24 fixed disc

2шт.

2

A20058

VALVE STEM

Wheel, 16.9 x 24 and 17.5L x 24 fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, purchase locally, 16.9 x 24 and 17.5L x 24 fixed disc wheel

2шт.

1a

A139084

RIM

WHEEL - rim, 13.6 X 24 & 14.9 X 24 offset fixed disc

2шт.

2

A20058

VALVE STEM

Rim, 13.6 X 24 & 14.9 X 24 offset fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, purchase locally, 13.6 X 24 & 14.9 X 24 offset fixed disc wheel

2шт.

4

D72304

RIM

- tire, 13.6 X 24 & 14.9 X 24 demountable

2шт.

5

1333150C1

DISC, WHEEL

DISC - wheel, replaces D72323, 13.6 X 24 & 14.9 X 24 demountable rims

2шт.

6

G10701

BOLT

- special, 5/8"-18 NF x 2-11/16", 13.6 X 24 & 14.9 X 24 demountable rims

12шт.

7

129-127

NUT,5/8"-18, G5

was 129-565, 13.6 x 24 & 14.9 x 24 demountable rims 5/8"-18, G5

12шт.

8

A20058

VALVE STEM

Rim, 13.6 X 24 & 14.9 X 24 demountable rims

2шт.

9

REF

INSTRUCTION

TIRE - rear, purchase locally, 13.6 X 24 & 14.9 X 24 demountable rims

2шт.

4

D72303

RIM

- tire, 16.9 X 24 & 17.5L X 24 demountable

2шт.

5

1333150C1

DISC, WHEEL

DISC - wheel, demountable, replaces D72323, 16.9 X 24 & 17.5L X 24 demountable rims

2шт.

6

G10701

BOLT

- special, 5/8"-18 NF x 2-11/16", 16.9 X 24 & 17.5L X 24 demountable rims

12шт.

7

129-127

NUT,5/8"-18, G5

was 129-565, 16.9 x 24 & 17.5L x 24 demountable rims 5/8"-18, G5

12шт.

8

A20058

VALVE STEM

Rim, 16.9 X 24 & 17.5L X 24 demountable rims

2шт.

9

REF

INSTRUCTION

TIRE - rear, purchase locally, 16.9 X 24 & 17.5L X 24 demountable rims

2шт.

10

D140705

BOLT

- wheel retaining, grade 8

16шт.

11

D147546

WEIGHT

- rear wheel, 500 pound

2шт.

12

413-10168

BOLT,Hex, 5/8" - 11 x 10-1/2", Gr 5

- hex, 5/8 NC x 10-1/2 inch, weights

8шт.

13

D90873

WASHER

- flat, special, weights

8шт.

14

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, Weights

8шт.
