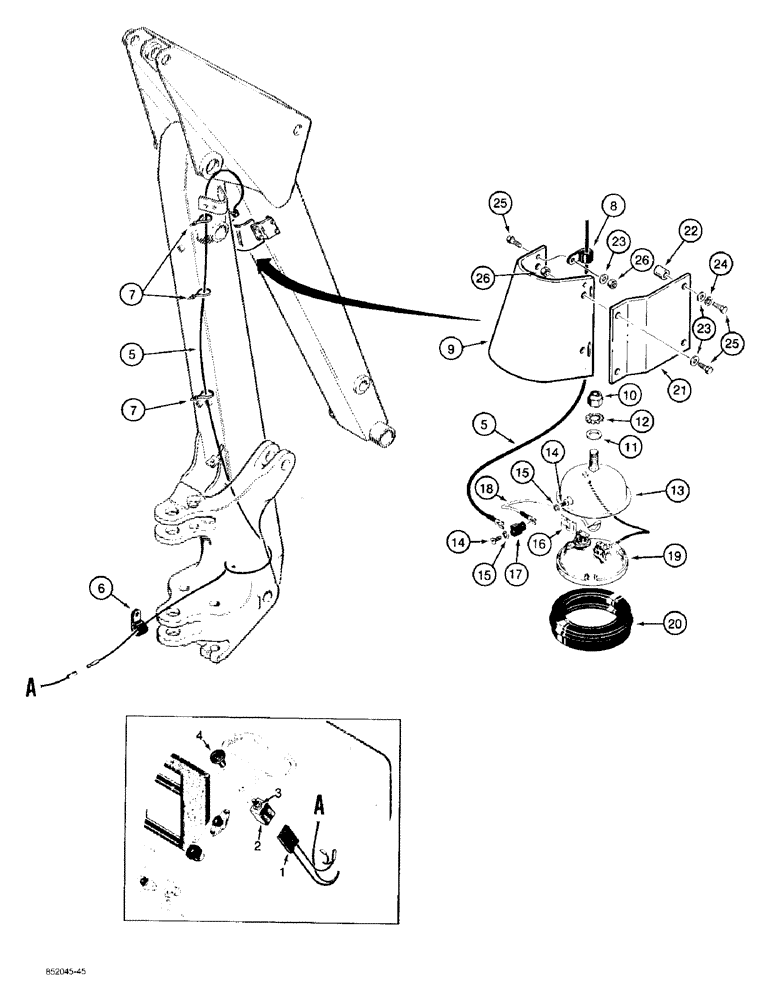

Запчасти Case 480F (4-48) - DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

1

D75761

HARNESS

WIRE ASSEMBLY - to dipper lamp switch

1шт.

2

D74330

SWITCH

- lamp, Includes: Ref. 3

1шт.

3

N7557

NUT

- special, 3/4 inch NF

1шт.

4

D95783

KNOB

- dipper lamp switch

1шт.

5

D50717

HARNESS

WIRE - dipper lamp

1шт.

6

80049853

YOKE

- harness

4шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

8

49853

TOOL

- harness

1шт.

9

D41427

SHIELD

- lamp

1шт.

10

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

12

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

14

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, pan head slotted, No. 8 NC x 1/4 inch

2шт.

15

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

16

10927

SPRING

- lamp

1шт.

17

68417D

INSULATOR

- lamp, replaces B50293

1шт.

18

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

19

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

20

D31441

RETAINER

- lamp

1шт.

21

D56849

BRACKET

- shield mounting

2шт.

22

D33265

NUT

BLOCK - tapped

4шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

9шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

9шт.

26

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

5шт.
