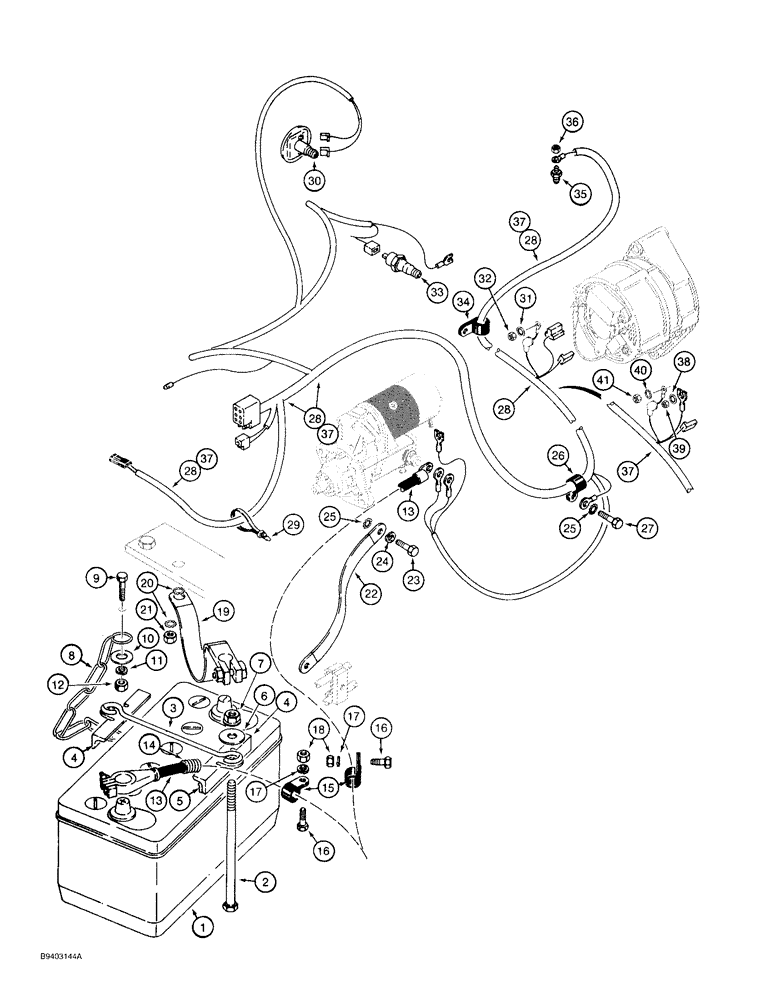

Запчасти Case 480F (4-10) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, 480F MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY, DRY - 12 volt, service replacement, see Figure 9-094 for battery compartment

1шт.

2

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

2шт.

3

D55561

RETAINER

- battery hold down

1шт.

4

D125079

BRACKET

- battery hold down

2шт.

5

D66072

SEALING STRIP

- rubber

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

8

D75052

CHAIN (AG)

CHAIN - door stop

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

10

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch, chain retaining

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

D80892

CABLE

- battery, positive

1шт.

14

D134214

GUARD

SLEEVE - rubber, positive cable, order D99461

1шт.

15

R21385

CLAMP

- battery cable

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

D83485

CABLE,300mm L

STRAP - negative ground, 12 inch (300 mm) long, see Figures 9-122 or 9-154 for cab or canopy mounting bolts

1шт.

20

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - external tooth lock, 3/8 inch

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

D127018

STRAP

- starter to frame, ground

1шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12-1.75 x 25 mm

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

26

T42284

CLAMP

- harness mounting

1шт.

27

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12-1.75 x 25 mm

1шт.

28

D140518

HARNESS

- engine, used with A186125 alternator

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

30

REF

INSTRUCTION

SENDER - air cleaner restriction indicator, see Figure 2-06 for air cleaner and connecting parts

1шт.

31

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, used with D140518 harness

1шт.

32

825-1406

NUT,M6, Cl 8

Used with D140518 harness M6, Cl 8

1шт.

33

A162297

SWITCH

SENDER - oil pressure gauge

1шт.

34

49768

CLIP

- harness, uses existing oil filter mounting bolts

1шт.

35

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water temperature

1шт.

36

193-1000

NUT,Keps, w/LW,#10-32

- hex, with lock washer, No. 10 NF

1шт.

37

D148416

HARNESS

- engine, used with A187873 alternator

1шт.

38

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Used with D148416 harness Int Tooth, #10

1шт.

39

825-1405

NUT,M5, Cl 8

Used with D148416 harness M5, Cl 8

1шт.

40

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch, used with D148416 harness

1шт.

41

825-1408

NUT,M8, Cl 8

Used with D148416 harness M8, Cl 8

1шт.
