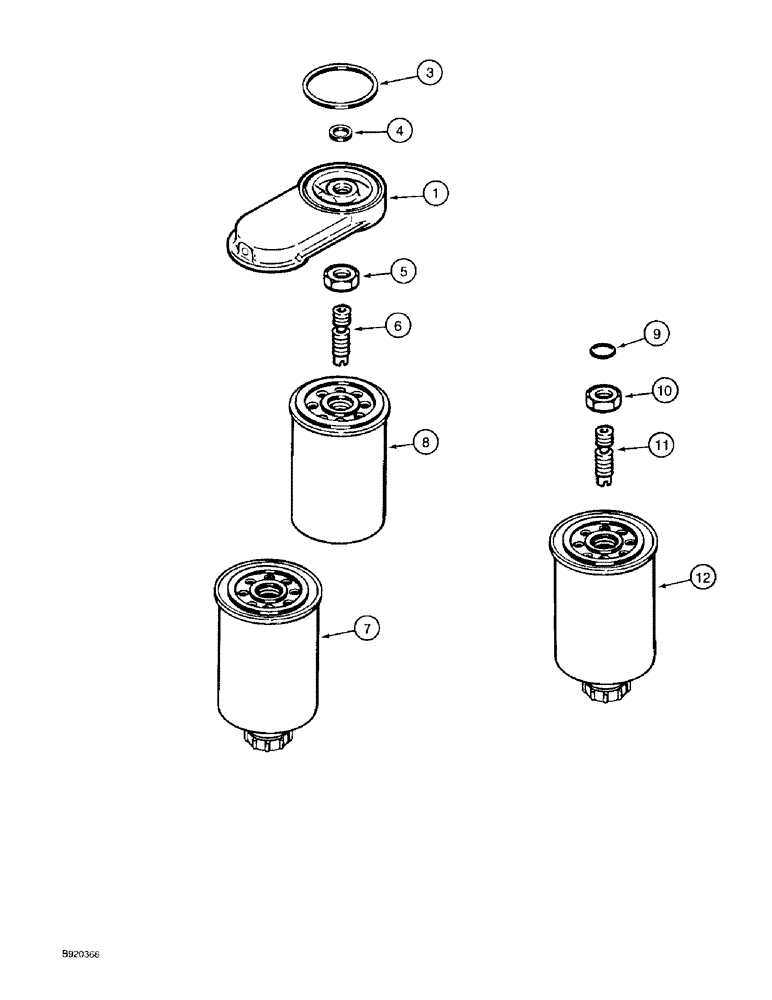

Запчасти Case 480F (3-10) - FUEL FILTER, 4-390 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm-2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

KIT - fuel filter, no longer available, order components separately, Includes: Ref. 7 and 8

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary, replaces J903410

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, single fuel filter applications

1шт.

10

J903293

JAM NUT

- hex, 16 mm-2.0, single fuel filter applications

1шт.

11

J903845

BANJO BOLT

ADAPTER - fuel, single filter applicaitons

1шт.

12

J843760

FILTER

- fuel, replaces J903202 filter, single applications

1шт.
