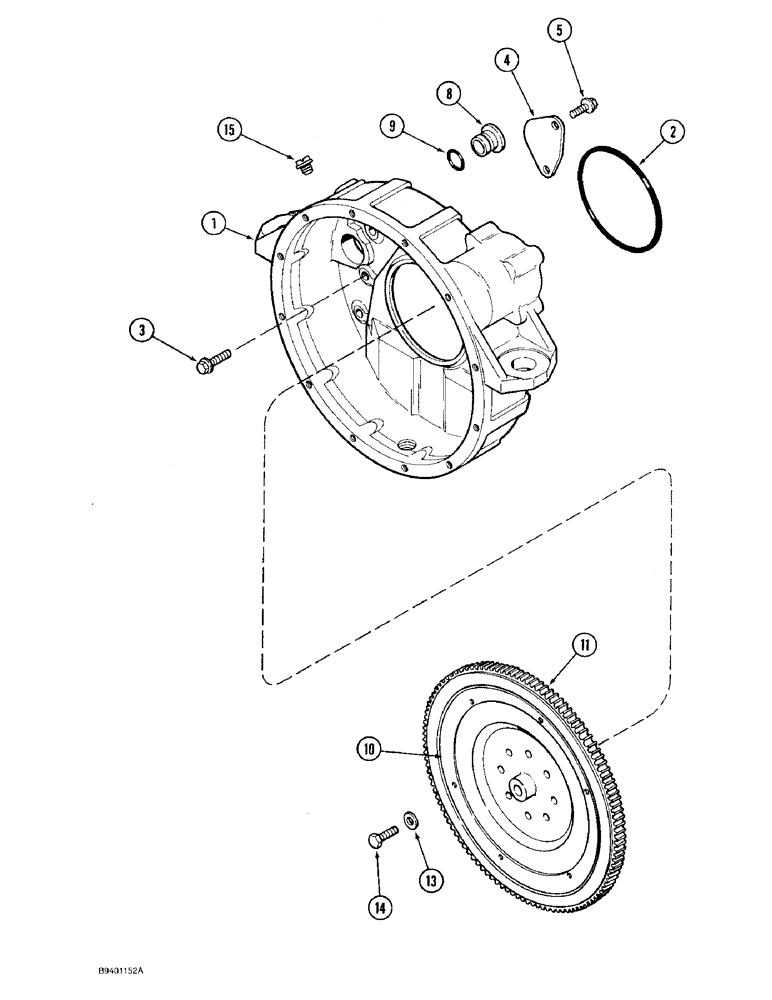

Запчасти Case 480F (2-38) - FLYWHEEL AND HOUSING, 4-390 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12-1.75 x 40 mm, class 10.9, Replaces J910540 bolt

8шт.

4

J908095

PLATE

- cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, flange, plate retaining

2шт.

8

J910248

PLUG

- housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing (Replaces 253070R1 O-ring) -212, 70 Duro, .859" ID x .139" Thk

1шт.

10

J910684

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 11

1шт.

11

J901774

GEAR,Flywheel

GEAR - flywheel

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, M12 x 32

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.
