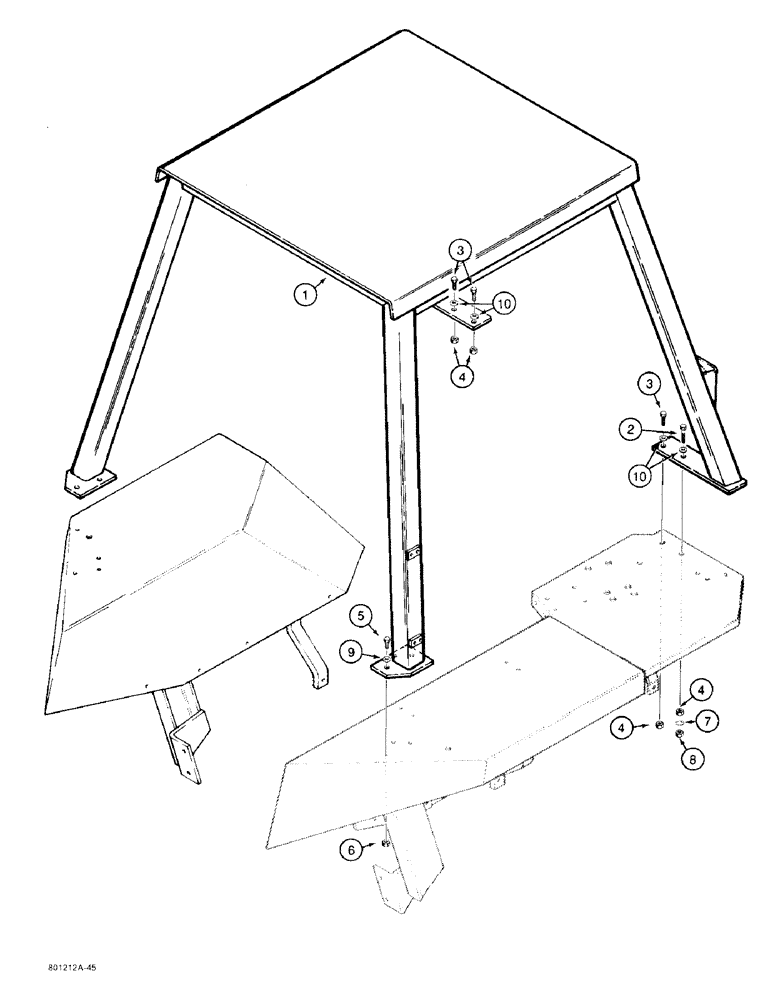

Запчасти Case 480F (9-154) - ROPS CANOPY, 480F MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, order from Machinery Price List

1шт.

2

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

1шт.

3

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

3шт.

4

429-1010

NUT,5/8"-11, G8

4шт.

5

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

6

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

6шт.

7

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8 inch

1шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

9

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

6шт.

10

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

4шт.
